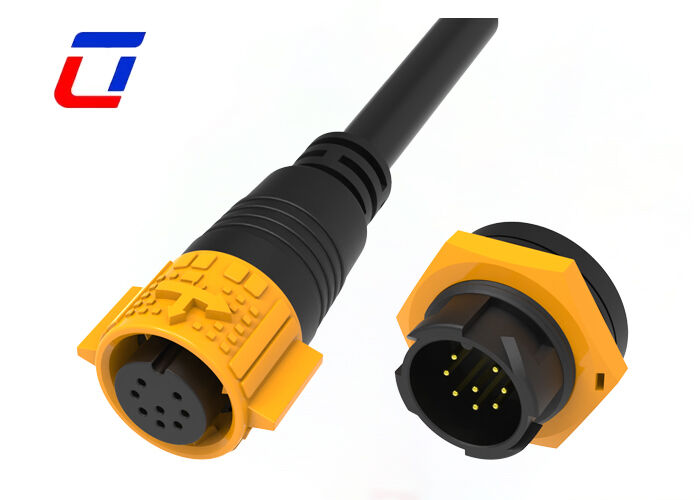

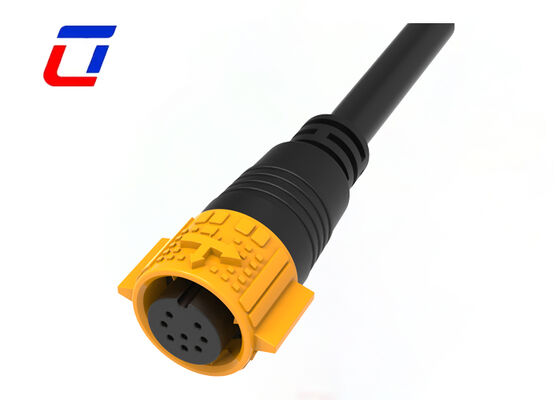

Name: 8Pin 300V Male Female Cable Connector M19 Wire To Board Signal Connector Quick Release
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Plug Socket

8Pin 300V Male Female Cable Connector M19 Wire To Board Signal Connector Quick Release

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	8Pin For Data	Gender:	Male To Female
Material:	Nylon	Rated Voltage:	300V
Operating Temperature:	-40℃-+105℃	Flame-sesistant Rating:	UL 94-V0
Highlight:	8Pin M19 waterproof connector , 300V wire to board connector , quick release signal connector

8Pin 300V Male Female Cable Connector M19 Wire To Board Signal Connector Quick Release

Product Overview

8 Pin Circular Connector M19 Male Female Wire Waterproof Connectors

Core Features

Wire-to-board male-female connector for low-voltage and medium-voltage signal transmission
M19 specification compatibility with 8-pin precise signal channels
Quick-release structure for efficient connection and stable transmission
Rated voltage 300V with IP67 waterproof rating
Anti-loose locking mechanism for vibration and drop resistance
Weather-resistant plastic housing with corrosion-resistant metal contacts

Technical Specifications

Electrical Parameters
Number of Poles	8Pin
Current Rating	10A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone
Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 1.5mm²

Configuration Options

Push lock quick release system
Multic-core power options: 2Pin, 3Pin, 4Pin, 5Pin
Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions: wire to wire and wire to board options
Current rated 10A for long time working
Cable assembly service supported with custom options
OEM/ODM services available

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Design

Frequently Asked Questions

What payment methods do you accept?

We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Do you accept other payment currencies besides USD?

Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Who is responsible for customs clearance? Do you provide necessary documents?

We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
