CE M16 Wire Splice Connector Waterproof 7 Pin Outdoor Cable Nylon Connector
Product Overview
M16 Male Female 7 Pin Waterproof Automotive Connectors For Low Power Signal
Main Features
- Push lock quick release system
- Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin
- Field assembly version: wire to wire / wire to board
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Product Description

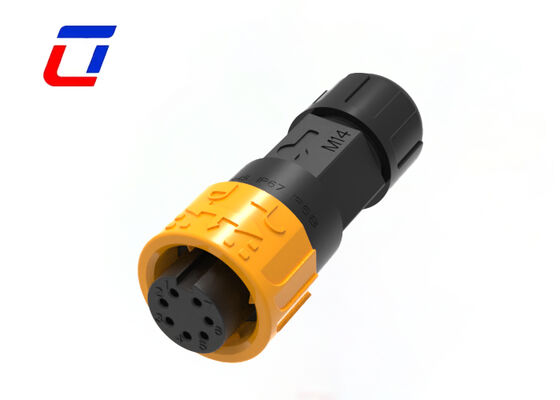

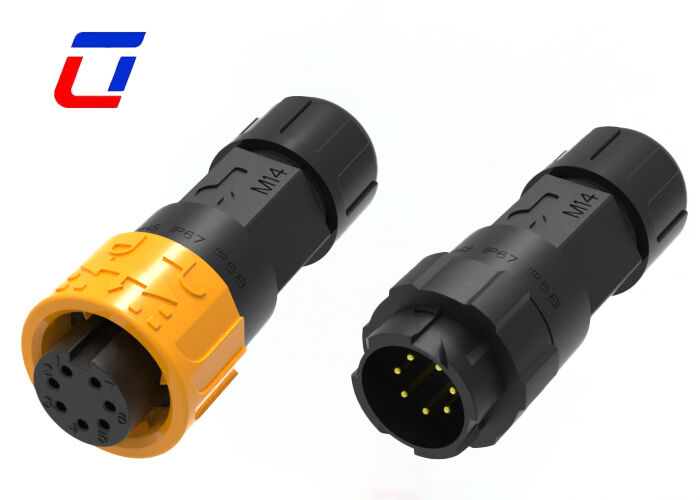

Core Positioning: CE-certified waterproof wire splice connector dedicated for outdoor use, compatible with M16 specification. With 7-pin multi-branch transmission design, it focuses on quick splicing and stable power/signal transmission of outdoor cables.
High-Quality Materials: Housing made of high-strength nylon with excellent weather resistance and UV aging resistance, capable of withstanding temperature shocks from -40℃ to +105℃. Contacts made of gold-plated copper alloy for excellent conductivity and corrosion resistance.
Protection Performance: IP67 waterproof and dustproof rating with double sealing structure and customized waterproof rubber rings, effectively isolating moisture, sand, and dust intrusion.
Connection Design: Push-lock locking mechanism automatically locks after insertion, anti-vibration and anti-falling. 7-pin precise alignment design prevents misinsertion.
Application Scenarios: Outdoor security line splicing, garden irrigation equipment, outdoor lighting, photovoltaic module auxiliary lines, and industrial outdoor equipment cable maintenance.
Electrical Parameters
| Parameter |
Specification |
| Number of Poles |
7Pin |
| Current Rating |
5A max. |
| Voltage Rating |
60VAC max |
| Durability Voltage |
500VAC @ 60 s. |
Application Industries
- Growth Lights
- Communications Application
- Product coding machines
- Inventory product coding
- Inkjet systems
- Solar System
- Industrial inkjet equipment
- Electric power equipment
- Laboratory forensic & pathology equipment
- Communications equipment
- Heavy machinery
Technical Parameters
| Parameter |
Specification |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Operation Parameters
| Parameter |
Specification |
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max Cable Cross Section Area |
0.5mm² ~ 2.5mm² |
Design Sketch
Frequently Asked Questions
What shipping methods do you offer? How long is the delivery time?
We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
Where is your factory located?
Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
How do I place an order? What is the process?
The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
How many materials you can provide?
There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.
