Name: 3+3 Pin M25 Male Female Waterproof Connector IP67 Plastic PA66 Power Data Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Outdoor Waterproof Connector

3+3 Pin M25 Male Female Waterproof Connector IP67 Plastic PA66 Power Data Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3Pin Power&3Pin Data	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Material:	Nylon
Contact Material:	Brass Gold-Plated	Application:	Outdoor Electronics
Highlight:	M25 waterproof connector IP67 , PA66 plastic power connector , 3+3 pin data connector

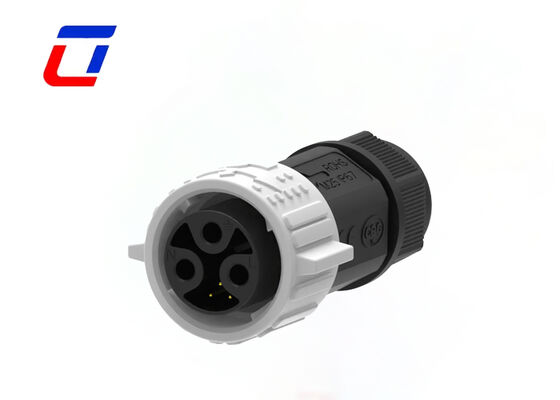

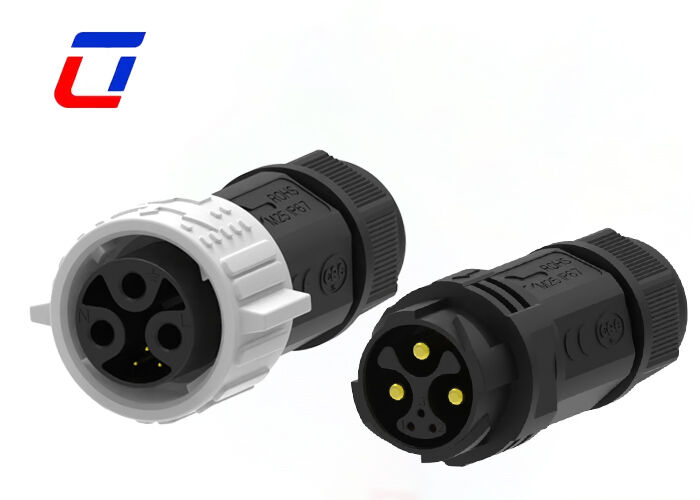

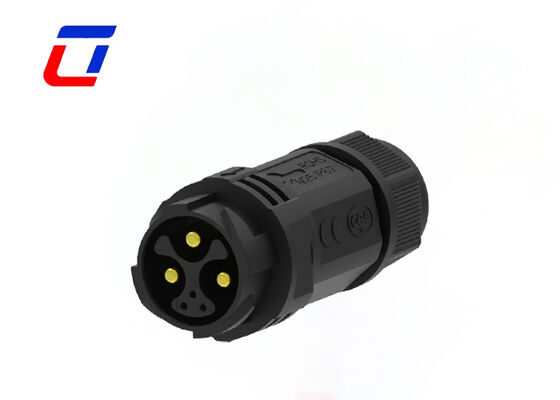

3+3 Pin M25 Male Female Waterproof Connector IP67 Plastic PA66 Power Data Connector

Waterproof Connector M25 3+3 Pin IP67 Male Female Quick Lock Connectors

Product Overview

3+3 Pin M25 Male Female Waterproof Connector is a high-performance industrial-grade connection solution integrating power transmission and data signal transmission, specially designed for stable operation in harsh environments. The product adopts a unique 3+3 pin core layout, which accurately distinguishes power and data channels, realizes synchronous transmission of power and signals with stable and interference-free transmission, and can meet the multi-dimensional connection needs of industrial equipment.

Key Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Product Type Features	Connector System: Cable-to-Cable Sealable: Yes Connector & Contact Terminates To: Wire & Cable Circular Connector Type: Plug, Receptacle Shell Type: Plastic Shell Product Type: Connector Kit
Configuration Features	Number of Positions: 3+3 Number of Signal Positions: 3 Contacts Preloaded: Yes
Electrical Characteristics	Operating Voltage (VAC): 600V max. Operating Voltage (VDC): 600V max.
Body Features	Shell Material: PA66 Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic Hermetically Sealed: Yes Entry Style: Side Environmental Protection Type: Elastomer Sealed, Hermetically Sealed O-Ring Material: Elastomer Sealed, Hermetically Sealed Environmental Protection: Yes
Contact Features	Contact Current Rating (Max) (A): 15A max. Circular Connector Contact Type: Pin-Socket
Mechanical Attachment	Connector Mounting Type: Cable Mount (Free-Hanging) Mating Alignment Type: Keyed Mating Retention: With
Dimensions	Wire Size (AWG): 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions	Operating Temperature Range (°C): -40 ~105°C IP Water Sealing Level: IP67 IP Dust Sealing Level: 6
Industry Standards	UL Flammability Rating: UL 94V-0

Environmental Protection

The core protection performance reaches IP67 level, with full-range dustproof and water immersion protection functions. It can still work normally even when immersed in 1-meter deep water for 30 minutes, easily adapting to harsh working conditions such as outdoor rain, humid workshops, and open-air projects.

Construction & Materials

The shell is made of high-quality PA66 engineering plastic, which has excellent impact resistance, high and low temperature resistance (-40℃ to 105℃) and corrosion resistance. It can resist chemical medium erosion and mechanical wear in industrial environments, effectively extending the service life of the product.

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

Technical Details
