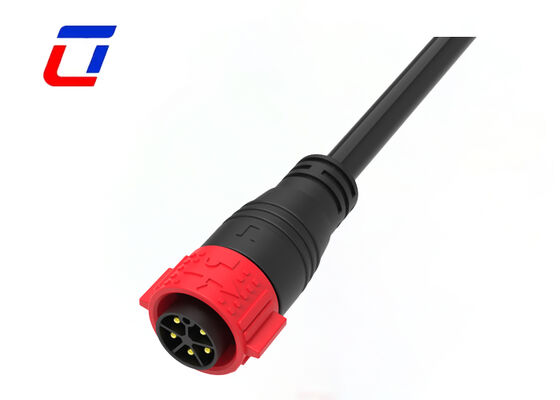

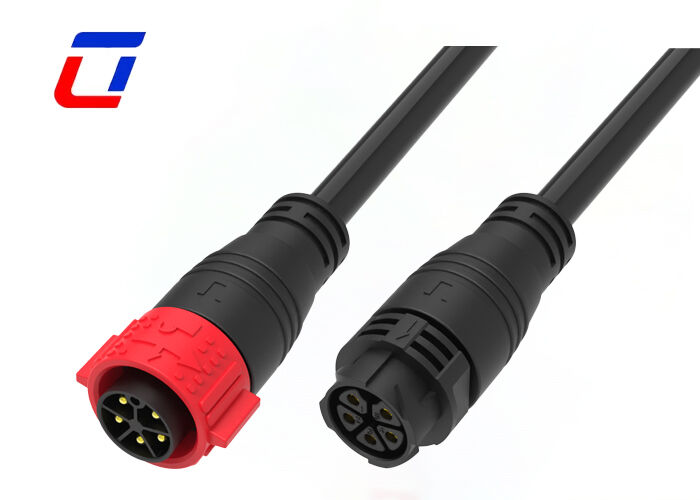

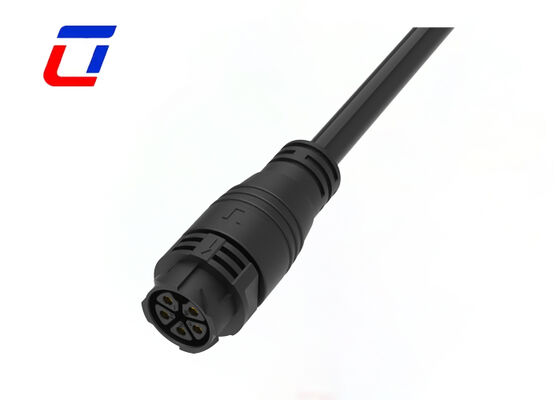

Name: IP67 M25 Outdoor Waterproof Wire Connectors 5 Pin Wire To Wire For Heavy Machinery
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Outdoor Waterproof Connector

IP67 M25 Outdoor Waterproof Wire Connectors 5 Pin Wire To Wire For Heavy Machinery

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Waterproof Rating:	IP67	Voltage:	300V
Temperature Range:	-40℃~+105℃	Number Of Pins:	5Pin
Application:	Solar Panel	Flame-resistant Rating:	UL94-V0
Highlight:	IP67 waterproof wire connectors , 5 pin outdoor wire connectors , heavy machinery waterproof connectors

IP67 M25 Outdoor Waterproof Wire Connectors 5 Pin Wire To Wire For Heavy Machinery

Product Overview

5 Pin Industrial Waterproof Power 50A 300V M25 Cable Connector is a high-performance power connection solution specially designed for harsh industrial environments.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector good choice up to 50A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters

Parameter	Specification
Number of Poles	5Pin waterproof connector
Current Rating	50A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2: Are you a factory or trading company?

A2: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q3: Are your products certified? What certifications do you have?

A3: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
