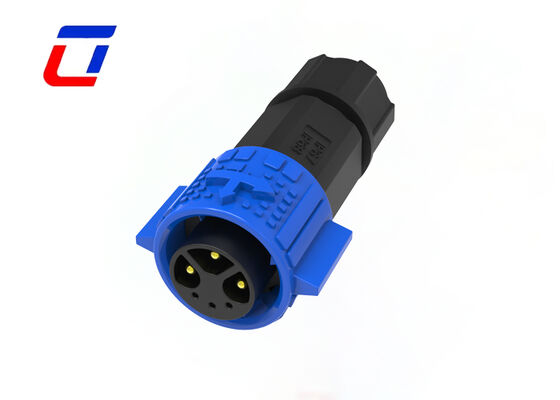

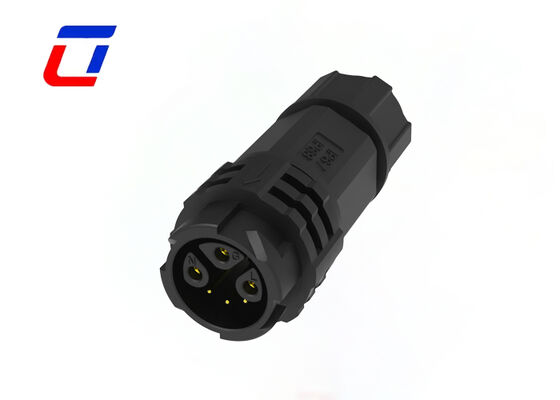

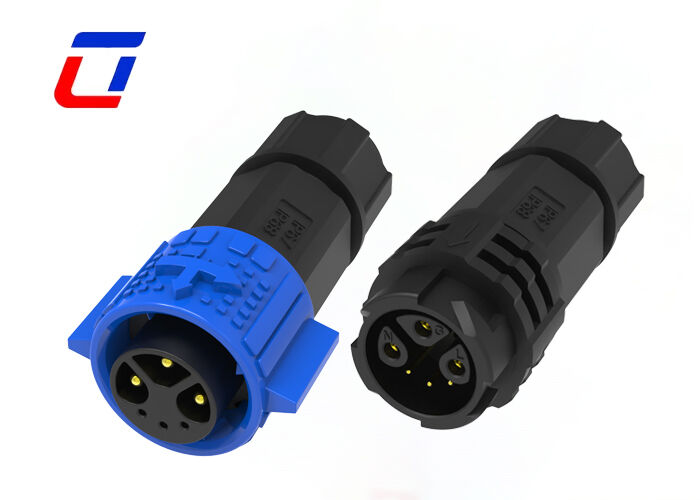

M19 3 Power 3 Signal Multi Pin Wire Connector Waterproof Outdoor Push Lock

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	6Pin	Waterproof Rating:	IP67
Current:	15A+5A	Temperature Range:	-40℃~+105℃
Protection Level:	IP67	Type:	Male/Female
Highlight:	M19 waterproof wire connector , 3 power 3 signal outdoor connector , push lock multi pin connector

M19 3 Power 3 Signal Multi Pin Wire Connector Waterproof Outdoor Push Lock

Product Overview

Waterproof Wire To Wire Connector M19 3+3 Pin 15A+5A Quick Connector

The 3-pin main power pins feature large-section gold-plated copper alloy construction, specifically engineered to carry 15A high current while minimizing heat loss. The 3-pin auxiliary pins handle signal transmission with independent shielding design to reduce power interference, making this connector ideal for "power + signal" integrated connection requirements in sensors, controllers, and other equipment without needing additional connectors.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Product Type Features	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Material	PA66
Number of Positions	3+3
Number of Signal Positions	3
Operating Voltage	600V max. (AC/DC)
Contact Current Rating	15A + 5A
Wire Size	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature	-40°C to 105°C
IP Rating	IP67
UL Flammability Rating	UL 94V-0

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage, also known as operating voltage, depends primarily on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.

Q2: Who is responsible for customs clearance? Do you provide necessary documents?

A2: We provide complete customs clearance documents including commercial invoice, packing list, bill of lading, and certification reports. Customs clearance fees and duties are the buyer's responsibility under EXW/FOB terms. We can assist with document preparation if needed.

Q3: How to track my shipment?

A3: Once goods are shipped, we provide tracking numbers and logistics platform links. You can track real-time status online or contact our team for updates.
