Name: 3+9Pin M19 Waterproof Panel Connector Good Quality Multi Pin Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Data Connector

3+9Pin M19 Waterproof Panel Connector Good Quality Multi Pin Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+9 PIN	Current:	15A+5A
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Material:	Nylon	Flame-resistant Rating:	UL94-V0
Highlight:	3+9Pin M19 waterproof connector , M19 multi pin panel connector , waterproof data connector with warranty

Quick Release Wire Connector M19 3+9 Pin OEM Waterproof 300V Connector

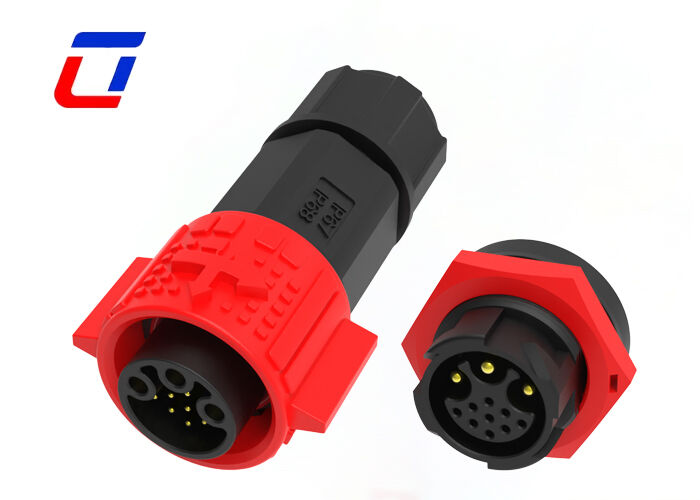

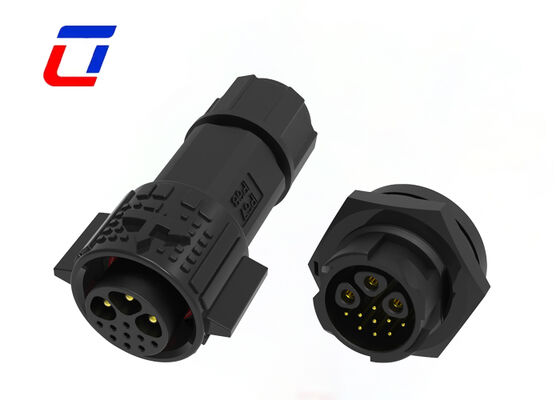

Quick Details of 3+9Pin waterproof connector

The M19 3+9 Pin Quick-Disconnect OEM Waterproof Connector falls into the category of industrial-class wire connectors and offers customizable solutions. It features an independent structural layout with 3 pins for main power supply and 9 pins for data signals, with a rated voltage of 300V. It also combines IP67 waterproof protection performance and a handy quick-disconnect mechanism. Specifically developed for scenarios requiring efficient plugging/unplugging operations and personalized demands, it serves as an OEM-exclusive adaptive solution that can flexibly match the interface specifications of various devices, thereby achieving the dual effects of stable power supply and accurate multi-channel data transmission.

This connector adopts an innovative push-type quick-disconnect structural design, enabling the unlocking and separation of the connector without the need for any auxiliary tools. Compared with the traditional threaded connection mode, its plugging operation efficiency is increased by 70%. In the locked state, relying on the double-buckle fixing structure, it can effectively avoid accidental disconnection during equipment operation or transportation, skillfully balancing the convenience of operation and the stability of connection.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Type Features
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit

Electrical Characteristics
Number of Poles	3+9
Current Rating	15A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Body Features
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes

Usage Conditions
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Operation/Application
Durability Rating (Cycles)	250, 251
Industry Standards
UL Flammability Rating	UL 94V-0

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

3+9Pin M19 Waterproof Panel Connector Good Quality Multi Pin Connectors 2

FAQ

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:What shipping methods do you offer? How long is the delivery time?

A2: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

Q3:Do you accept other payment currencies besides USD?

A3: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
