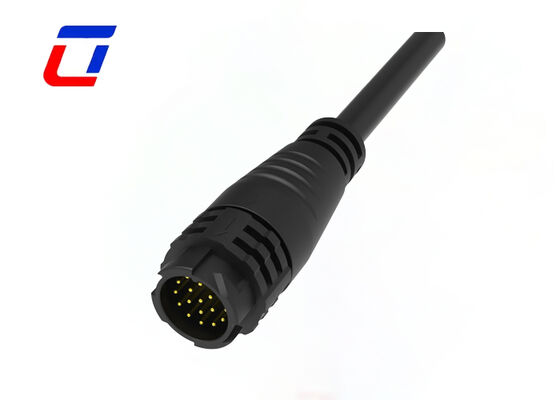

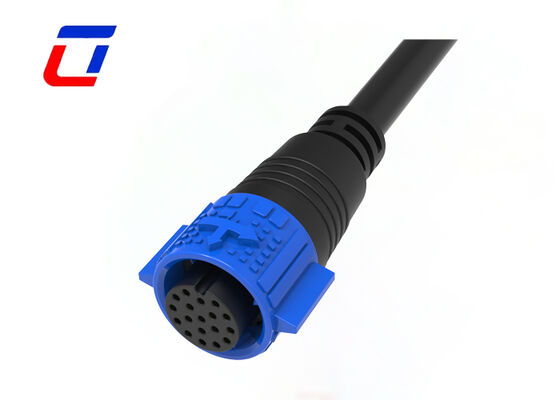

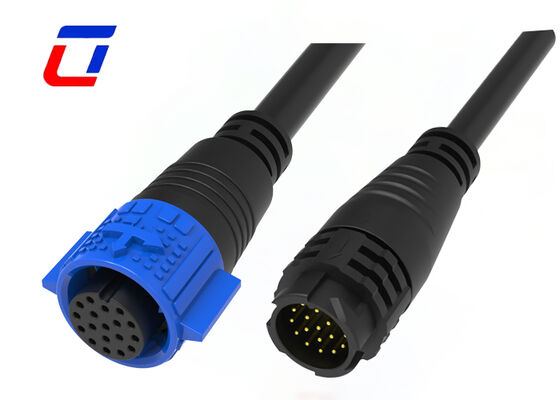

Name: Push Lock M19 Waterproof Outdoor Wire Connectors 18 Pin Male And Female Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Cable Connector

Push Lock M19 Waterproof Outdoor Wire Connectors 18 Pin Male And Female Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	18Pin	Current Rating:	5A
Rated Voltage:	300V	Material:	Nylon
Color:	Blue White Red Yellow	Flame-resistant Rating:	UL94-V0
Highlight:	M19 waterproof wire connectors , 18 pin waterproof cable connector , outdoor waterproof male female connectors

18 Pin Circular Connector M19 Wire To Wire Outdoor Quick Lock Connectors

Quick Description

Core Specifications & Male-Female Compatibility: Features an 18Pin full-pin precision layout, meeting the needs of simultaneous multi-channel signal and power transmission in outdoor scenarios; adopts an M19 standard circular interface, including a complete male and female plug-in assembly with precise alignment, tight contact and uniform impedance. It is compatible with various outdoor wire specifications, enabling quick and stable docking of wires and equipment with high installation efficiency.

Outdoor-Grade Waterproof Protection: Equipped with IP67 high-level waterproof and dustproof performance, adopting a fully enclosed sealing structure with a dedicated waterproof rubber ring. It can effectively resist harsh outdoor environments such as rain, heavy rain washing, dew condensation and sand dust invasion, and even eliminate the risk of short circuit and electric leakage in long-term outdoor open-air scenarios, ensuring stable operation of the connection system.

Push-Lock Secure Connection: Equipped with a core push-lock mechanism, it can be locked by gently pushing after insertion, with a firm connection that does not loosen. It can effectively resist external influences such as outdoor wind shaking, equipment vibration and accidental pulling, avoiding connection detachment; unlocking can be easily separated by gently pressing the unlock button, which is easy to operate and greatly improves outdoor installation and maintenance efficiency.

Outdoor Weather-Resistant Material & Craftsmanship: The housing is made of weather-resistant reinforced engineering plastic, with excellent UV resistance, high and low temperature resistance (-40℃~105℃), anti-aging and anti-corrosion performance, adapting to complex outdoor climate environments; the pins adopt high-purity copper core tin-plating technology, with excellent electrical conductivity, oxidation resistance and wear resistance, extending the outdoor service life of the product.

Safety & Convenience Features: Complies with outdoor electrical safety standards, with excellent insulation performance, effectively preventing the risk of electric leakage and electric shock; adopts a male-female plug-in foolproof design to avoid equipment or connector damage caused by reverse insertion; the overall structure is compact and lightweight, easy to install in outdoor narrow spaces, and light in weight, suitable for various installation methods such as outdoor suspension and wall mounting.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters
Number of Poles	18Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: Can I pay after receiving the goods?

A:For first - time cooperation, advance payment is required to ensure production smoothness. For long - term trusted clients, flexible payment terms can be discussed after several successful orders.

3. Q: Can I pay after receiving the goods?

A: For first - time cooperation, advance payment is required to ensure production smoothness. For long - term trusted clients, flexible payment terms can be discussed after several successful orders.

Push Lock M19 Waterproof Outdoor Wire Connectors 18 Pin Male And Female Connectors 2
