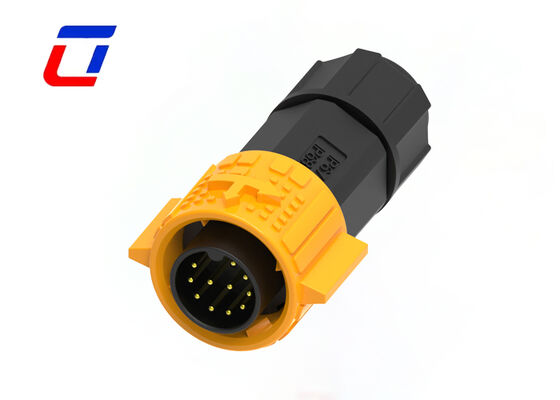

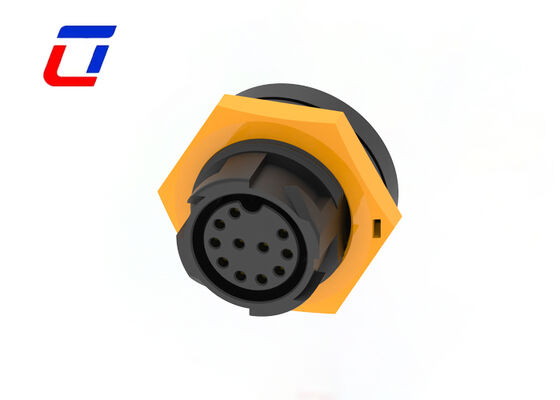

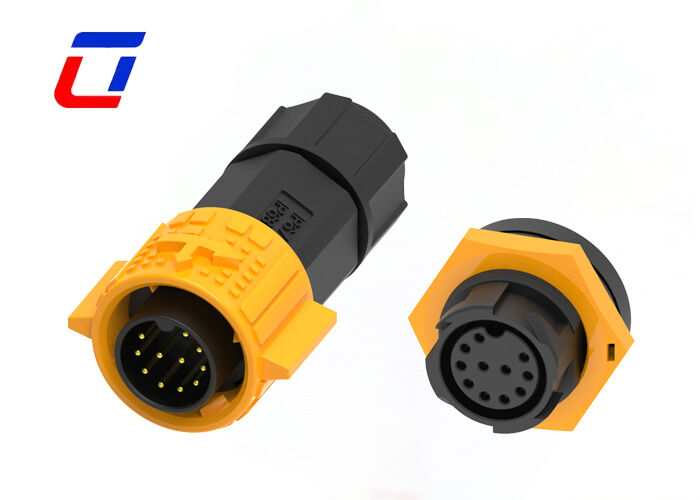

M19 11Pin IP67 Panel Mount Connector Push Pull Industrial Plug Socket For Data
Wire To Board M19 11 Pin Connectors For Data
Main Features
Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome
Core Specification Parameters
Features an 11Pin pin design that accurately matches data transmission requirements, ensuring the stability and integrity of signal transmission; adopts an M19 circular interface that complies with industrial standard dimensions, suitable for panel mount scenarios. It has precise plug-in positioning, strong compatibility with cables and equipment interfaces of corresponding specifications, enabling efficient and convenient installation.
Professional Waterproof Protection
Equipped with IP67 high-level waterproof and dustproof performance, the housing adopts a fully sealed structural design. It can effectively resist erosion from harsh industrial environments such as rainwater, moisture, dust, and oil stains, ensuring uninterrupted data transmission under complex working conditions, providing reliable protection for stable equipment operation and extending product service life.
Industrial-Grade Adaptation Features
Specifically designed for data transmission in industrial scenarios, it is compatible with the common voltage range of industrial equipment and has stable current-carrying capacity. It can safely and reliably realize high-speed data and auxiliary power transmission between industrial equipment, meet the strict operation requirements of industrial-grade equipment, and is widely compatible with various industrial control and data acquisition equipment.
High-Quality Material & Craftsmanship
The housing is made of industrial-grade high-strength engineering plastic, which has excellent wear resistance, impact resistance and corrosion resistance, adapting to complex industrial environments; the pins adopt precision gold-plating technology, which effectively reduces contact resistance, improves electrical conductivity, oxidation resistance and aging resistance, ensuring stable and long-term durable connections.
Wide Application Scenarios
Suitable for data transmission connections in industrial scenarios such as industrial automation control, intelligent manufacturing equipment, data acquisition systems, industrial sensors, outdoor detection equipment, and communication base stations. It is especially suitable for harsh industrial environments and outdoor data transmission scenarios that require panel mount, waterproof and dustproof functions.
Push-Pull Convenient Connection
Adopts a user-friendly push-pull connection design, which is smooth and labor-saving in plugging and unplugging, with firm connection and locking, not easy to fall off due to vibration and collision; combined with panel mount structure, it has precise installation positioning and convenient disassembly and maintenance, greatly improving installation and operation efficiency in industrial scenarios.
Electrical Parameters
| Number of Poles |
11Pin |
| Current Rating |
5A max |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s |
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Application Industries
Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery
Operation Parameters
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max Cable Cross Section Area |
0.5mm² ~ 2.5mm² |
Design Sketch
Frequently Asked Questions
How do you guarantee product quality?
We implement strict quality control throughout the production process: raw material inspection, in-line testing, and final sampling inspection. All products come with a 12-month warranty against manufacturing defects.
How to buy your products?
You need to do as followings:
Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire gauge
Confirm Cable Length and Material
How can I get samples?
It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.
How to track my shipment?
Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
