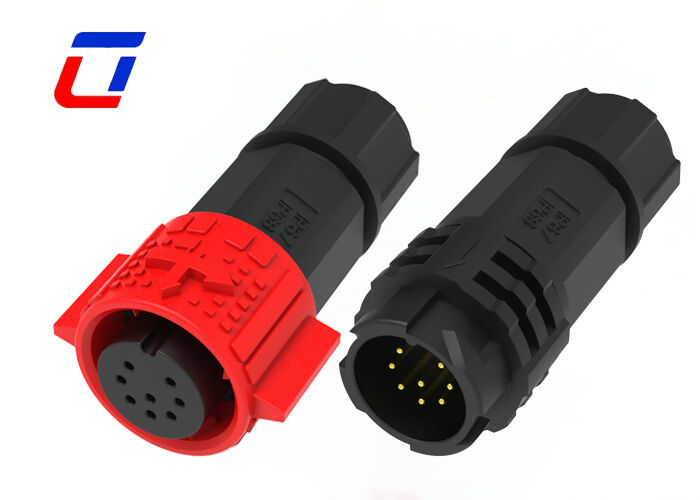

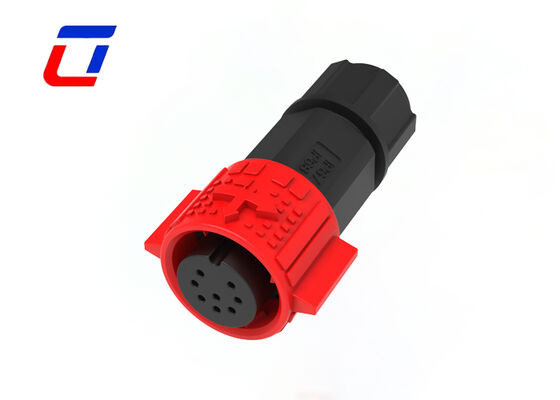

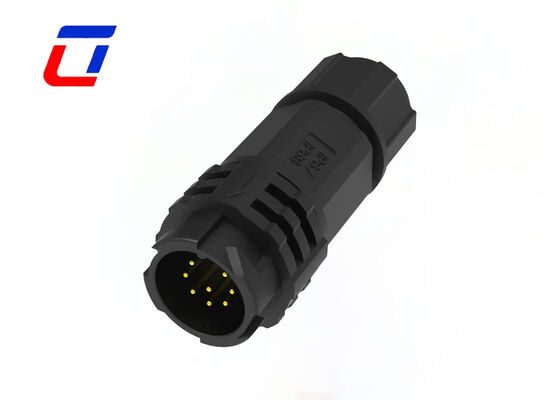

300V Waterproof Quick Disconnect Wire Connectors M19 8Pin IP67 Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	8Pin	Current Rating:	5A
Material:	Nylon	Rated Voltage:	300V
Operating Temperature:	-40℃-+105℃	Flame-sesistant Rating:	UL 94-V0
Highlight:	300V waterproof M19 8Pin connector , IP67 quick disconnect wire connector , waterproof data connector with 300V

300V Waterproof Quick Disconnect Wire Connectors M19 8Pin IP67 Connectors

8 Pin Circular Connector M19 Waterproof Connectors

Product Highlights

Focusing on the core needs of 300V medium and low voltage wire connection, this M19 specification 8Pin multi-channel quick-disconnect connector integrates IP67 high-level waterproof protection and convenient operation and maintenance design. It can adapt to complex industrial working conditions while meeting frequent plugging and unplugging needs in harsh outdoor environments.

Core Specifications

The interface adopts M19 standard circular design, equipped with 8Pin signal and power composite transmission channels, rated voltage 300V, supporting wire-to-wire direct connection mode. Built-in precise male-female pairing structure and quick-disconnect mechanism enables multi-channel synchronous transmission, adapting to the efficient connection needs of medium and low voltage systems.

Protection & Material

Strictly follows the IP67 industrial protection standard, enabling complete dustproof and temporary water immersion protection at 1m water depth for 30 minutes. Features a full-circumference integrated sealing gasket that effectively isolates rainwater, dust, moisture and oil pollution intrusion. The shell is made of PA66 reinforced engineering plastic with excellent weather resistance and impact resistance.

Convenient Operation & Maintenance Design

Innovative snap-on quick-disconnect structure with clear plugging feedback allows single-person operation for easy connection and separation, significantly reducing operation and maintenance time costs. The pin core adopts high-precision brass gold plating process for anti-oxidation, corrosion-resistance, and excellent anti-vibration and anti-fall performance.

Transmission Guarantee & Application Fields

Optimized for 300V voltage scenarios with 8Pin independent channel design that physically avoids mutual interference between signals and power. Features low contact resistance and small transmission loss, ensuring stability of power supply and signal transmission. Widely used in industrial automation wiring, outdoor lighting systems, new energy medium and low voltage equipment, security line extension, medical instrument power supply and other scenarios.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Specifications

Electrical Parameters
Number of Poles	8Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone
Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: What payment methods do you accept?

A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Q: How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

T*r

Germany Jan 13.2025

Helpful (1862)

Wir haben diese Stecker unter rauen Außenbedingungen getestet – starker Regen, hohe Feuchtigkeit, Staub – sie halten hervorragend. Keine Korrosion, keine lockeren Verbindungen, kein Wassereintritt. Die technischen Daten stimmen exakt mit der Beschreibung überein. Vor- und After-Sales-Service sind hervorragend.

M*.

United States Aug 10.2024

Helpful (2667)

Shipping was faster than I expected, and the packaging was really secure—no damage at all. Once I started using these connectors, I was impressed right away. They fit perfectly, connect tightly, and are really easy to install even for someone who isn’t a professional. We use them in outdoor lighting and security systems, and they’ve been working flawlessly. The seller’s attitude was great from start to finish, very friendly and professional. I’ve already recommended this shop to a few of my contractor friends.

E*n

Austria Feb 28.2023

Helpful (1.1w+)

After testing multiple brands of waterproof connectors, I finally found one that I can trust completely. The build quality is excellent, the materials feel strong and durable, and the waterproof sealing works exactly as described. I have used these in harsh outdoor environments with high humidity and frequent rain, and they have never leaked or failed. Equally impressive is the customer service: the seller responded quickly to all my inquiries, offered professional suggestions, and cared about my satisfaction throughout the whole process. Fast shipping, safe packaging, great product, great service—this is what a reliable supplier should be.
