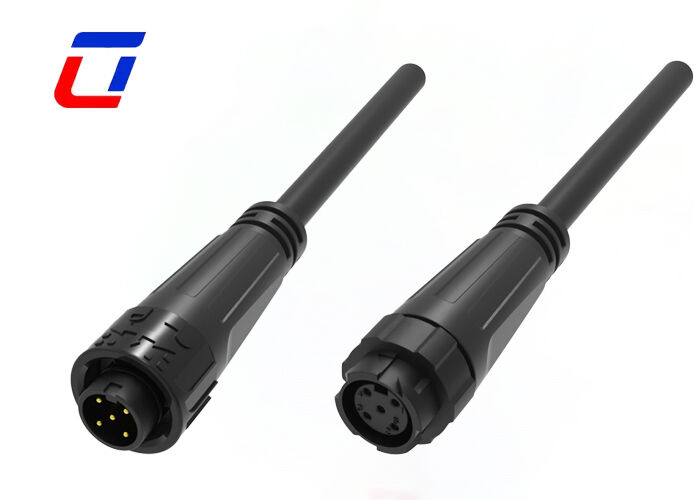

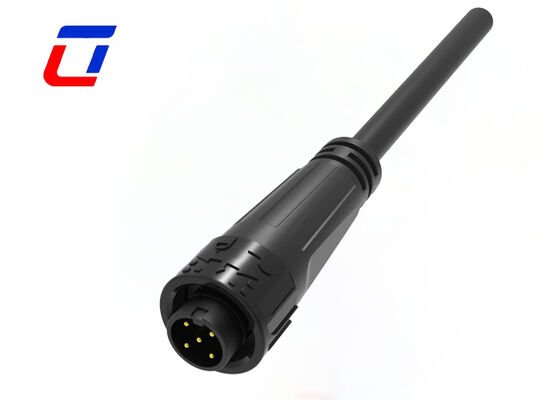

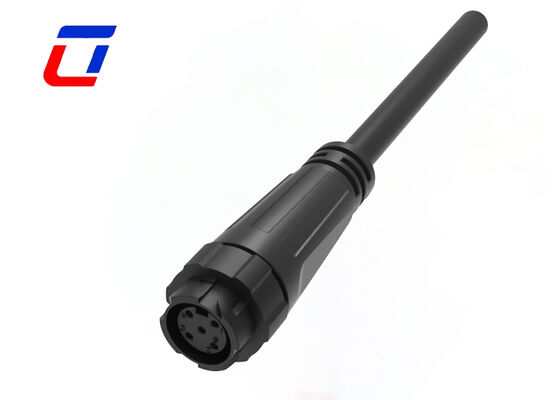

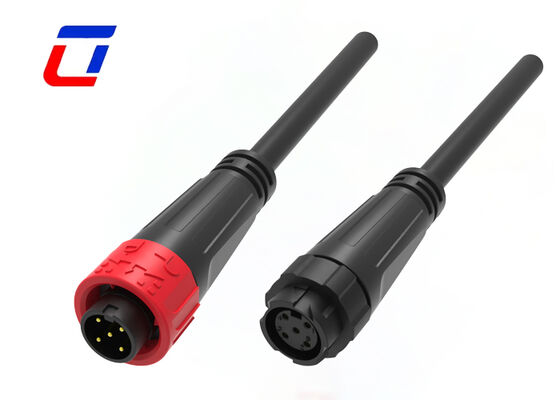

Name: M16 5Pin ip67 wire connector 8A Male female molded cable connector To Electric equipment
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Circular Connector

M16 5Pin ip67 wire connector 8A Male female molded cable connector To Electric equipment

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	5Pin	Current:	8A Max. For Power
Rated Voltage:	125V	Waterproof Rating:	IP67
Color:	Blue Red Black White Yellow	Operating Temperature:	-40℃~+105℃
Highlight:	M16 5Pin waterproof wire connector , IP67 molded cable connector , 8A electric equipment connector

M16 5 Pin 300V Push Lock Waterproof Circular Connector IP67

8A 5Pin Waterproof Circular Connector, Quick Release Male To Female Wire Connector

Core Parameters: 5-pin design, rated current 8A, supporting male-female pairing, specially designed for cable connection scenarios of electrical equipment
Protection Performance: Meets IP67 protection level, enabling complete dustproof and temporary water immersion protection, suitable for complex working environments with dust and water such as outdoors and humidity
Structural Design: Adopts integrated molding process of molded cable, with tight connection that is not easy to fall off, and has good anti-pulling and anti-vibration performance, with convenient and efficient installation
Transmission Advantages: 8A rated current can stably meet the power or signal transmission needs of low and medium power electrical equipment, with small contact resistance and strong transmission stability
Application Scope: Widely used in cable docking scenarios of various industrial electrical equipment, automatic control devices, outdoor electronic instruments and other equipment that require waterproof and stable connection

Key Features

Push-lock quick release system
Multiple core : 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly version supports both wire-to-wire and wire-to-board connections
High current rating up to 8A for continuous operation
Cable assembly service available for custom requirements
OEM/ODM services supported

Electrical Parameters

Number of Poles	5Pin waterproof connector
Current Rating	8A max
Voltage Rating	125VAC max
Durability Voltage	500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications equipment
Product coding machines
Inventory product coding systems
Inkjet systems
Solar power systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimension

M16 5Pin ip67 wire connector 8A Male female molded cable connector To Electric equipment 0

Professional Manufacturer

M16 5Pin ip67 wire connector 8A Male female molded cable connector To Electric equipment 1

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

Q2: How many materials you can provide?

A2:There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

Q3: Can I pay after receiving the goods?

A3:For first - time cooperation, advance payment is required to ensure production smoothness. For long - term trusted clients, flexible payment terms can be discussed after several successful orders.
