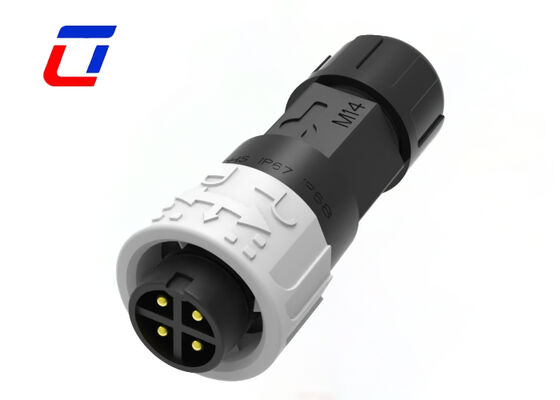

Name: Circular Panel Mount Connector 4Pin M16 IP67 10A Wire Connectors Waterproof
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Circular Connector

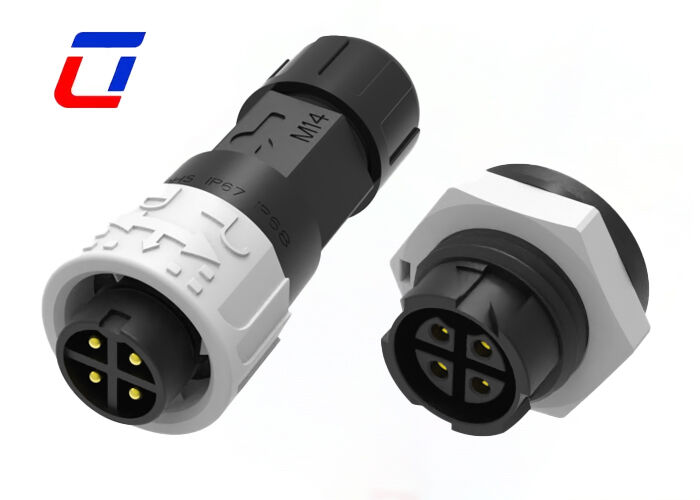

Circular Panel Mount Connector 4Pin M16 IP67 10A Wire Connectors Waterproof

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Current:	Max 10A	Number Of Contacts:	4 Pin
Voltage Rating:	300 V	Waterproof Level:	IP67
Diameter Range:	MAX 9.00mm	Flame-resistant Rating:	UL94-V0
Highlight:	4Pin M16 waterproof connector , IP67 wire connector 10A , circular panel mount connector

10A 4Pin Waterproof Circular Connector,Quick Release Plug Socket Connector

Description of Industrial Waterproof Circular Connector

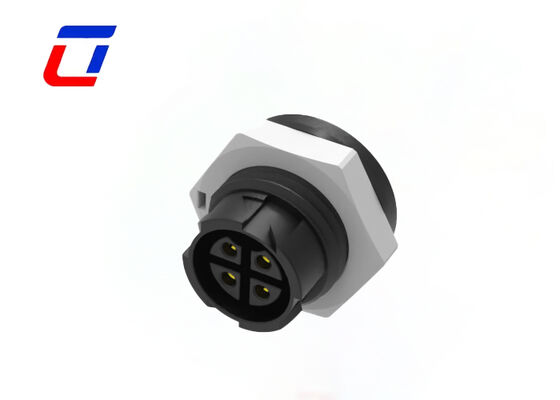

Core Specifications: 4-pin design, compatible with M16 mounting size, meeting basic connection needs for panel mount scenarios
Protection Level: IP67 high protection standard, effectively dustproof and protected against temporary water immersion, suitable for harsh environments such as humidity and dust
Current Capacity: Rated current 10A, capable of stable power transmission, suitable for power supply or signal connection of low and medium power equipment
Product Features: Waterproof performance, wire connection design, easy installation, firm and reliable connection
Application Scenarios: Widely used in industrial control, automation equipment, outdoor electronic equipment, security monitoring and other scenarios requiring waterproof connection

Main Feature

Push lock quick release system,hassle-free operation.
Multic-core are available for selection: 2Pin,3Pin,4Pin,5Pin,2+4Pin,7Pin,8Pin.
Field assembly version:wire to wire / wire to board
High current rated waterproof connector good choice up to 10A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	4Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

Circular Panel Mount Connector 4Pin M16 IP67 10A Wire Connectors Waterproof 0

More Technical Details

Circular Panel Mount Connector 4Pin M16 IP67 10A Wire Connectors Waterproof 1

FAQ

Q1:Can I get a free sample before placing a bulk order?

A1:We offer free samples for standard models, but the shipping cost is at your expense. For customized samples, a small fee will apply and can be deducted from the formal order later.

Q2:Do you support product customization?

A2: Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

Q3:How do I place an order? What is the process?

A3: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

A*a

Brazil Jan 15.2025

Helpful (195)

Já testamos esses conectores impermeáveis por mais de 3 meses em nosso parque industrial. Eles são resistentes à corrosão, não enferrujam e a conexão nunca falha. O atendimento do vendedor é excelente, resposta rápida e prestativa, desde a consulta pré-venda até o suporte pós-venda. A entrega foi no prazo e o produto chegou intacto. Muito satisfeitos, vamos comprar novamente.

J*z

Philippines May 11.2024

Helpful (143)

Nagtry na kami ng maraming brand ng waterproof connector, ngunit ito ang pinakamatibay. Hindi tumatagas ng tubig kahit sa malakas na ulan, hindi nagkakaroon ng short circuit, safe gamitin. Ang pre-sales at after-sales na serbisyo ay napakabait, mabilis tumugon at tumutulong sa amin sa lahat ng problema.

L*n

Panama Feb 29.2024

Helpful (4329)

I really appreciate the after-sales support. We had a small question about wiring, and they responded quickly with clear instructions. The connectors are sturdy, waterproof, and perform exactly as described. Very reliable supplier.
