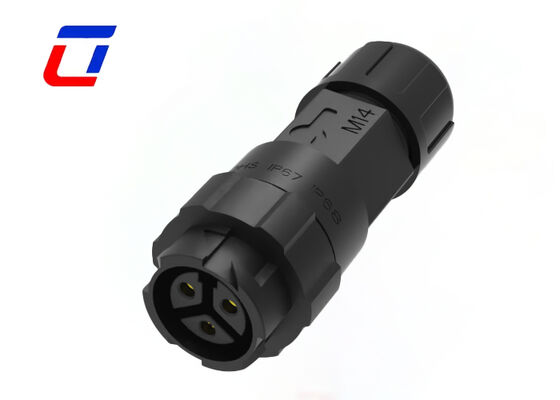

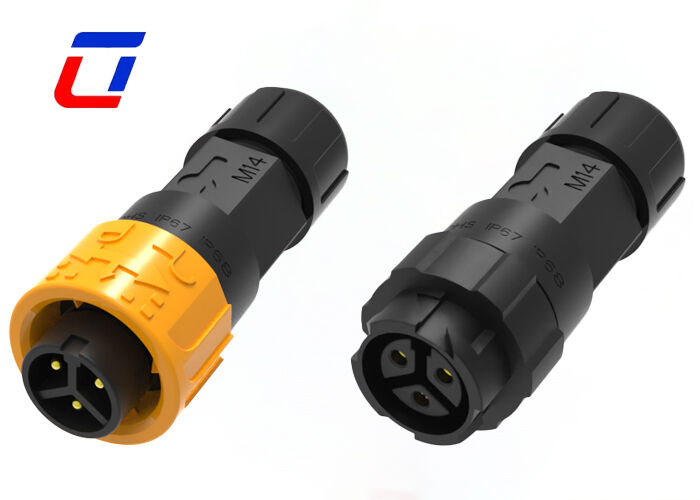

Name: M16 IP67 3 Pin Waterproof Automotive Connector 300V Wire To Wire Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Power Connector

M16 IP67 3 Pin Waterproof Automotive Connector 300V Wire To Wire Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3Pin	Current:	10A Max
Rated Voltage:	300V	Waterproof Rating:	IP67
Diameter Range:	MAX 9.00mm	Flame-resistant Rating:	UL94-V0
Highlight:	M16 waterproof automotive connector , 3 pin wire to wire connector , IP67 waterproof power connector

Quick Release M16 3Pin Waterproof Circular Cable Connector.

Description of Industrial Waterproof Circular Connector

3 Pin Core Specifications and Connection Mode: Adopts a 3 Pin wire-to-wire connection design, suitable for 300V rated voltage scenarios, and can stably meet the power transmission or signal interaction needs of small and medium-power equipment; it follows the M16 interface standard, with a compact circular structure, accurate pin alignment, smooth plugging and extremely small connection gap, ensuring stable and uninterrupted power or signal transmission under various working conditions.

IP67 High-Level Waterproof and Dustproof Performance: Features IP67 officially certified protection level, which can achieve complete dustproof and 30-minute waterproof immersion in 1-meter water depth. The connection between the shell and the cable adopts an automotive-grade integrated sealing process, matched with a high and low temperature resistant waterproof rubber ring, which can effectively resist erosion from rainwater, car washing water stains, road sand, oil stains and humid environments. It is suitable for complex working conditions of outdoor driving, greatly reducing the risk of short-circuit faults caused by environmental factors.

Exclusive Advantages of Wire-To-Wire Connection: Designed for general wire-to-wire connection scenarios, the male and female plugs and cables adopt reinforced connection technology, which is firmly fixed without loose hidden dangers and can resist slight vibration, jolt and slight pulling during equipment operation; no professional installation tools are required, and on-site plug-in operation is convenient and efficient, adapting to high-frequency operation needs such as temporary equipment docking, later maintenance and cable extension.

300V Adaptive High-Quality Materials and Safety: The conductor is made of high-conductivity oxygen-free copper, and the surface is anti-oxidation tinned, which generates less heat and low loss under 300V voltage transmission, ensuring efficient transmission of electrical energy or signals; the shell is made of aging-resistant engineering plastic, with a wide temperature adaptation range of -40℃~105℃, excellent impact resistance and UV resistance, and can isolate external electromagnetic interference, eliminating potential safety hazards such as electric leakage and signal leakage, complying with general industrial safety operation standards.

Diversified Adaptation Application Scenarios: Widely used in wire-to-wire connection scenarios such as industrial control equipment, security monitoring systems, smart home appliances, new energy auxiliary equipment, instruments and meters, and outdoor sensors; it can adapt to the connection needs of various small and medium-power equipment, providing reliable connection support for the stable operation of equipment whether in indoor industrial workshops or outdoor open-air environments.

Main Feature

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin,2+4Pin,7Pin,8Pin, available
Field assembly version:both wire to wire and wire to board options
High current rated waterproof connector good choice up to 10A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	3Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

M16 IP67 3 Pin Waterproof Automotive Connector 300V Wire To Wire Connectors 0

More Technical Details

M16 IP67 3 Pin Waterproof Automotive Connector 300V Wire To Wire Connectors 1

FAQ

Q1:How do I place an order? What is the process?

A1:The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Q2:Can I pay after receiving the goods?

A2: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

Q3:How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
