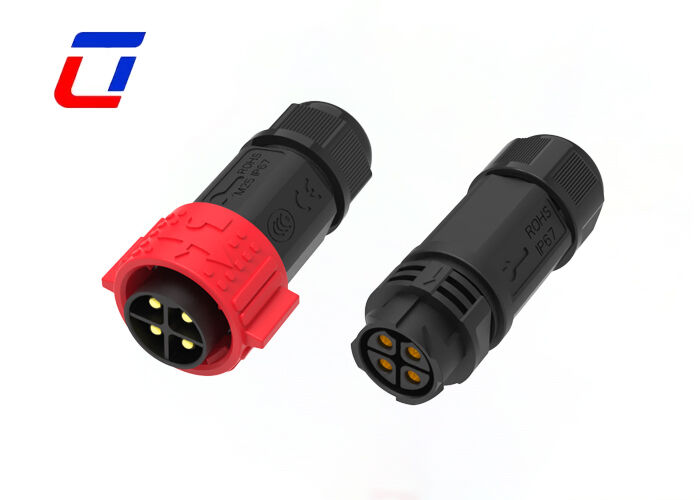

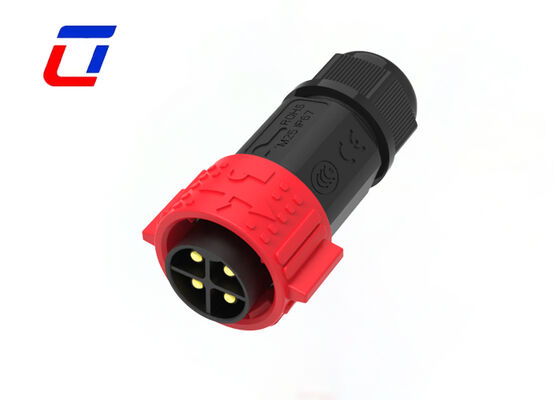

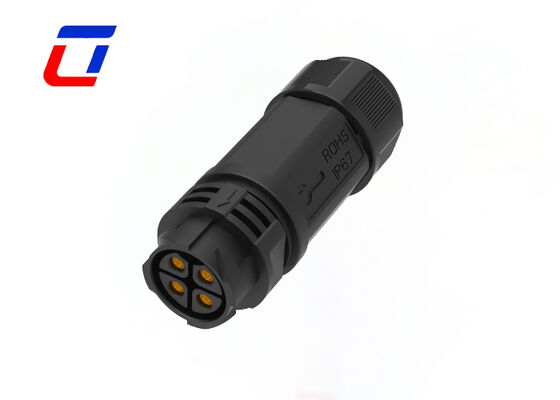

Name: M25 4 Pin Male Female Connector ROHS Push Locking Wire To Wire Power connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Power Connector

M25 4 Pin Male Female Connector ROHS Push Locking Wire To Wire Power connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	4Pin	Current:	50A
Rated Voltage:	500V	Gender:	Male/Female
Material:	Nylon	Color:	Red/Yellow/Black/White
Highlight:	4 pin waterproof power connector , ROHS wire to wire connector , push locking power connector

Waterproof Electrical 500V M25 4 Pin Waterproof Push Lock Connectors

Quick Details of IP67 Waterproof connector

Core Specifications and Connection Type: Adopts a 4Pin male-female plug-in structure, focusing on the wire-to-wire connection method, accurately matching the power transmission needs of small and medium-power equipment; the interface specification is M25 standard, with good market versatility, which can be easily adapted to cables and equipment interfaces of the same specification, reducing procurement and adaptation difficulties.

Push Locking Design: Innovatively adopts a push locking fixing mechanism, which enables convenient and efficient plug-in operation. It can be locked with a light push, effectively preventing connection loss caused by accidental pulling and vibration, and ensuring the continuity of power transmission; the unlocking process is simple and labor-saving, facilitating later equipment maintenance and cable replacement.

ROHS Environmental Certification: Fully complies with ROHS environmental standards. The production process of the connector strictly controls the use of harmful substances such as lead and mercury, taking into account both product performance and environmental protection needs. It is suitable for industry scenarios with clear environmental protection requirements, such as home appliance manufacturing, new energy supporting facilities, and medical equipment auxiliary fields.

Main Feature

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5+2Pin and 2+20Pin available
Field assembly version:both wire to wire and wire to board options
High current rated waterproof connector good choice up to 50A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	4Pin waterproof connector
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Operation Parameters
Voltage Rating	600VAC max
Current Rating	30A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

FAQ

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:What payment methods do you accept?

A2: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Q3:Do you accept other payment currencies besides USD?

A3: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

M25 4 Pin Male Female Connector ROHS Push Locking Wire To Wire Power connector 3
