PA66 M25 3+13 Pin Plug And Socket Cable Connector Quick Release Waterproof Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+13PIN	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Connection:	Wire To Board
Flame-resistant Rating:	UL94-V0	Color:	Green/Blue/Red
Highlight:	PA66 waterproof plug connector , M25 quick release socket , 3+13 pin waterproof connector

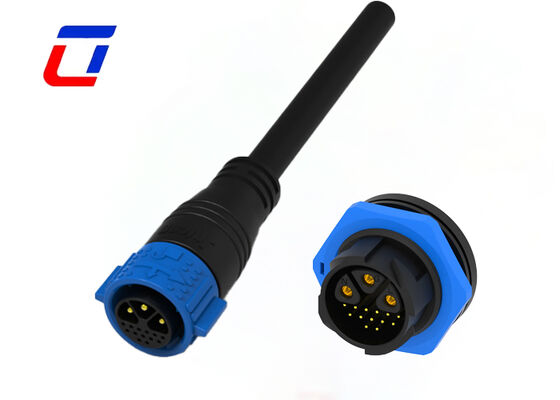

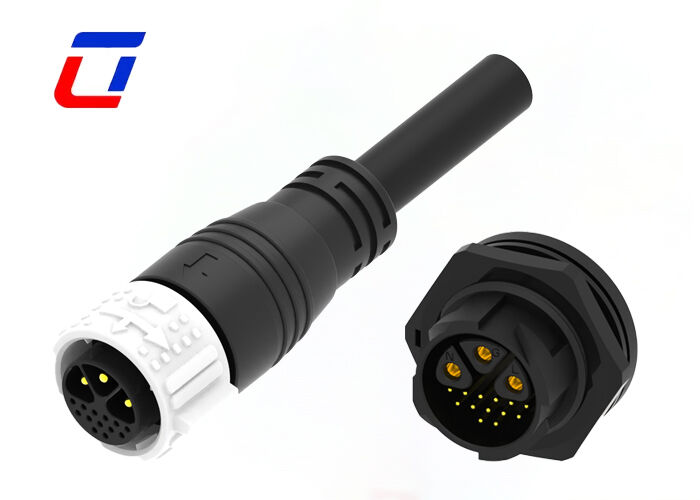

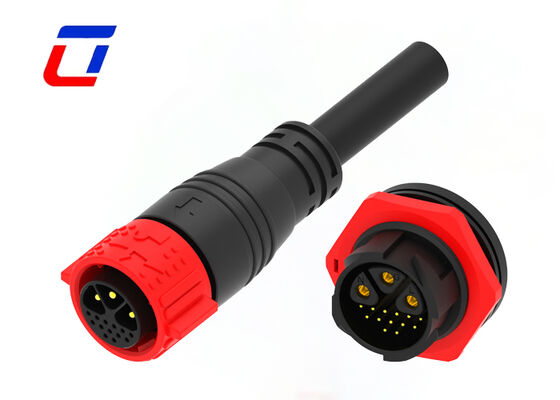

PA66 M25 3+13 Pin Plug And Socket Cable Connector Quick Release Waterproof Connector

Product Overview

3+13 Pin Plug Socket Waterproof M25 Data And Power Connector IP67 with Quick Locking System

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Construction

High-Quality PA66 Material: The shell is made of PA66 engineering plastic, which has excellent high and low temperature resistance, impact resistance and corrosion resistance. It is not easy to crack and deform due to environmental aging, and can adapt to complex working conditions such as outdoors and industrial workshops for a long time, extending the service life of the connector.

Diverse Terminal Connection Solutions: Offers two terminal connection methods: screw crimping and soldering. Screw terminals support solder-free quick wiring, adapting to on-site emergency assembly and later line adjustment; soldering terminals have higher connection firmness, suitable for fixed wiring scenarios that require long-term stable operation.

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Specifications

Feature Category	Specification
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+13
Number of Signal Positions	13
Contacts Preloaded	Yes
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Current Rating (Max)	15A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range	-40°C to 105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

Product Images

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2: Can I pay after receiving the goods?

A2: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

Q3: Do you accept other payment currencies besides USD?

A3: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
