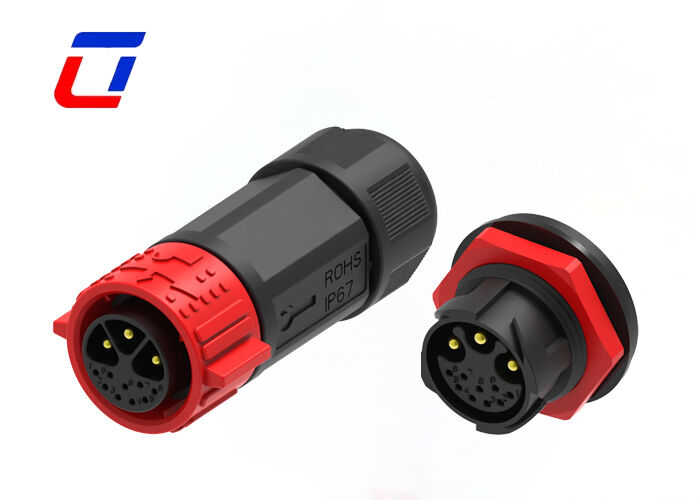

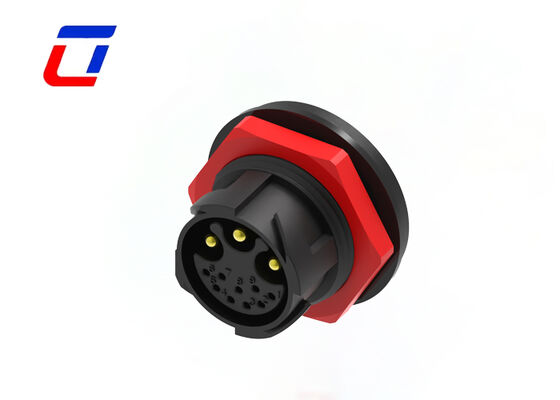

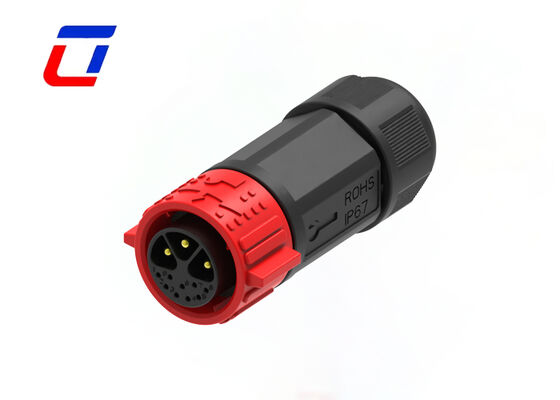

Name: 3+9 Pin Power And Signal Connectors M25 Quick Lock Wire To Board Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Price: Negotiable USD
Availability: InStock

Home Products Outdoor Waterproof Connector

3+9 Pin Power And Signal Connectors M25 Quick Lock Wire To Board Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Current:	15A	Number Of Pins:	3+9 PIN
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Material:	Nylon	Flame-resistant Rating:	UL94-V0
Highlight:	M25 waterproof wire to board connector , quick lock signal connector 3+9 pin , outdoor waterproof power connector M25

3+9 Pin Power And Signal Connectors M25 Quick Lock Wire To Board Connector

Multi Pin Connector Types Of 3+9 Pin M25 30A 300V Outdoor Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Quick Details

Wire To Board Connection Architecture, Adapting to Core Application Needs: Focus on Wire To Board connection scenarios, accurately match the docking needs of cables and circuit boards, with firm connection and low signal transmission loss, providing reliable guarantee for wire-board signal and power interaction inside and outside the equipment.

Wide Application Scenarios, Covering Multi-Field Equipment: Specifically designed for various power and signal transmission related applications, it can be widely used for Wire To Board signal and power connection in fields such as industrial automation control equipment, outdoor lighting systems, security monitoring equipment, medical instruments and communication terminals.

IP67 Protection Level, Adapting to Complex and Harsh Environments: Reaches IP67 high protection standard, with complete dustproof and short-term water immersion protection capabilities, which can effectively resist external erosion such as dust, rainwater and moisture, ensuring stable work in complex environments such as outdoors and industrial workshops.

Technical Specifications

Product Type Features	Connector System: Cable-to-Board Sealable: Yes Connector & Contact Terminates To: Wire & Cable Circular Connector Type: Plug, Receptacle Shell Type: Plastic Shell Product Type: Connector Kit
Configuration Features	Number of Positions: 3+9 Number of Signal Positions: 9 Contacts Preloaded: Yes
Electrical Characteristics	Operating Voltage (VAC): 300V max. Operating Voltage (VDC): 300V max.
Body Features	Shell Material: PA66 Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic Hermetically Sealed: Yes Entry Style: Side Environmental Protection Type: Elastomer Sealed, Hermetically Sealed O-Ring Material: Elastomer Sealed, Hermetically Sealed Environmental Protection: Yes
Contact Features	Contact Current Rating (Max): 15A max. Circular Connector Contact Type: Pin-Socket
Mechanical Attachment	Connector Mounting Type: Cable Mount (Free-Hanging) Mating Alignment Type: Keyed Mating Retention: With
Dimensions	Wire Size (AWG): 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions	Operating Temperature Range: -40°C to 105°C IP Water Sealing Level: IP67 IP Dust Sealing Level: 6
Industry Standards	UL Flammability Rating: UL 94V-0

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2: What if there are quality issues with the received goods?

A2: Please provide photos/videos of the defective products within 7 days of receipt. We will verify the issue and offer solutions such as free replacement, repair, or partial refund based on the situation.

Q3: How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
