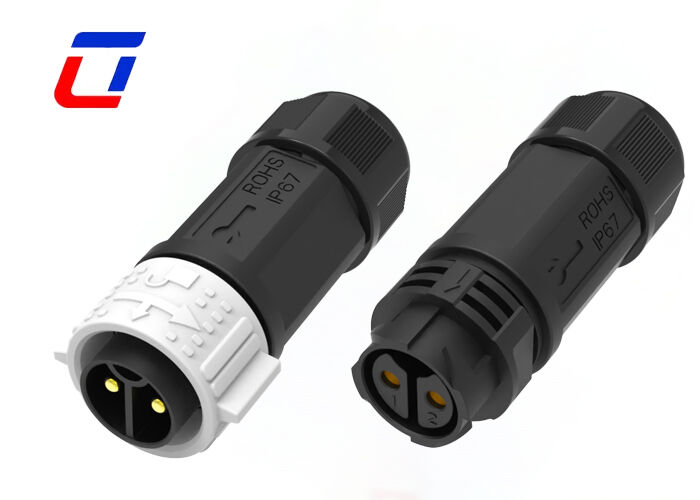

Name: M25 2 Pole Cable Connector 50A 500V Waterproof Power Connector Wire To Wire
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Power Connector

M25 2 Pole Cable Connector 50A 500V Waterproof Power Connector Wire To Wire

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Current:	50A	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Number Of Pins:	2 Pin
Color:	Green Blue Red	Flame-resistant Rating:	UL94-V0
Highlight:	M25 2 pole waterproof power connector , 50A waterproof wire to wire connector , 500V waterproof cable connector

M25 2 Pin Waterproof DC Power Connector 50A Male To Female Connectors

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5+2Pin and 2+20Pin available
Field assembly version:both wire to wire and wire to board options
High current rated waterproof connector good choice up to 50A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Quick Details of 2Pin waterproof Panel Connector

2-pole exclusive power transmission, fitting actual needs of high-power power supply: Adopting 2-pole core structure design, focusing on wire-to-wire direct power supply for outdoor high-power equipment, fully matching industrial-grade power transmission logic - such as main power connection of outdoor large LED floodlights, power output docking of small outdoor charging piles, no need for additional signal or grounding pins, avoiding power loss caused by functional redundancy; 50A high current carrying capacity can easily adapt to high-power loads such as motors and heaters, eliminating equipment shutdown or connector heating caused by insufficient current.

500V high voltage resistance design, ensuring high-power transmission safety: With a rated voltage resistance of 500V, it is customized for medium and high voltage high-power power supply scenarios, with excellent insulation performance - using high-strength insulating materials to isolate the two poles, which can effectively avoid electric arc and leakage problems during high-power transmission (such as high-voltage power supply of outdoor industrial production lines, parallel connection of large photovoltaic modules); fully compliant with industrial electrical safety standards, providing double safety guarantee for wire-to-wire high-power power transmission, and eliminating safety accidents caused by insufficient voltage resistance.

Focus on high-power wire-to-wire scenarios, wide industry adaptability: Widely used in practical scenarios such as outdoor industrial construction (such as power supply connection of temporary distribution boxes on construction sites), new energy fields (such as power output of small energy storage equipment, cable docking of outdoor charging piles), large outdoor lighting (such as power supply of stadium LED lights), ship terminals (such as power supply of outdoor operation equipment); with the advantages of 50A high current, 500V high voltage resistance, IP67 waterproof and stable wire-to-wire transmission, it has become a core preferred accessory for high-power outdoor power supply in various industries.

Electrical Parameters
Number of Poles	2 Pin
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

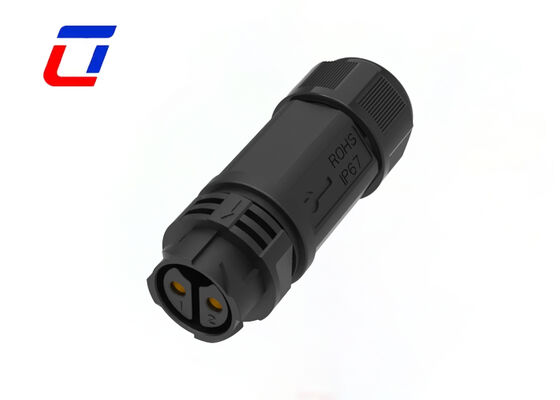

M25 2 Pole Cable Connector 50A 500V Waterproof Power Connector Wire To Wire 1

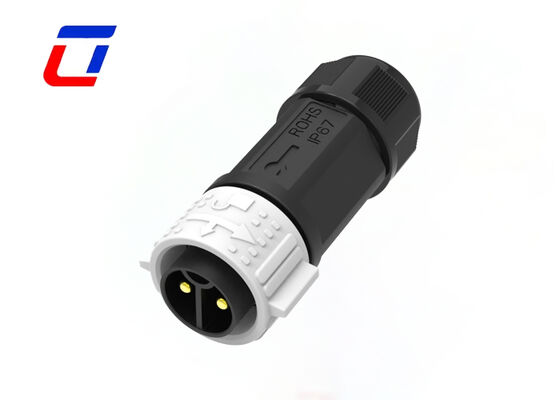

M25 2 Pole Cable Connector 50A 500V Waterproof Power Connector Wire To Wire 2

FAQ

Q1:Are your products certified? What certifications do you have?

A1:All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q2:How to track my shipment?

A2: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

Q3:Who is responsible for customs clearance? Do you provide necessary documents?

A3: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
