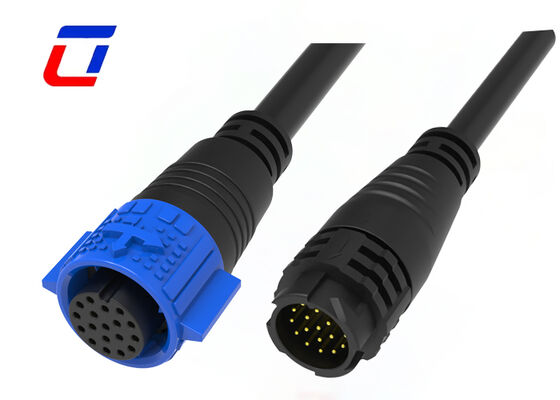

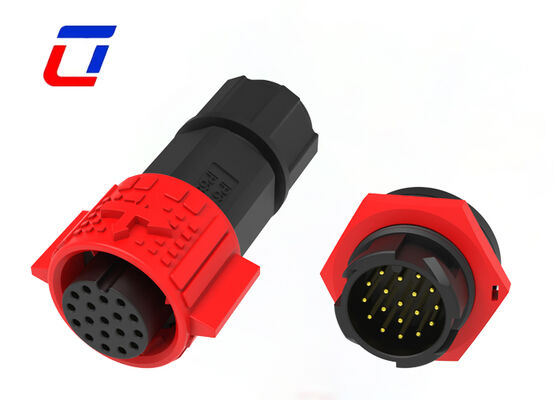

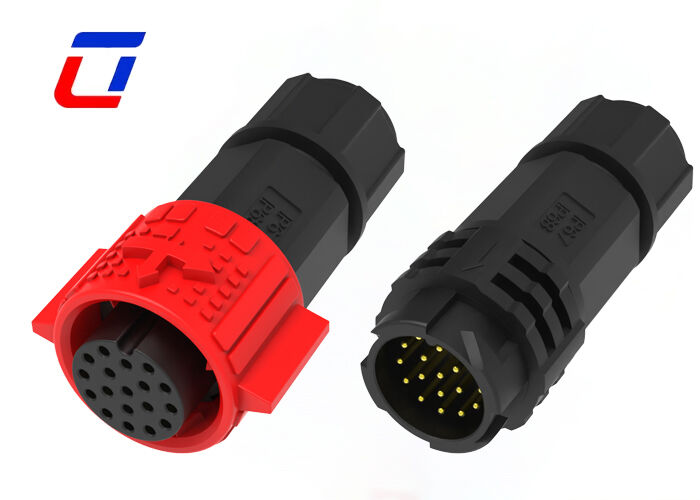

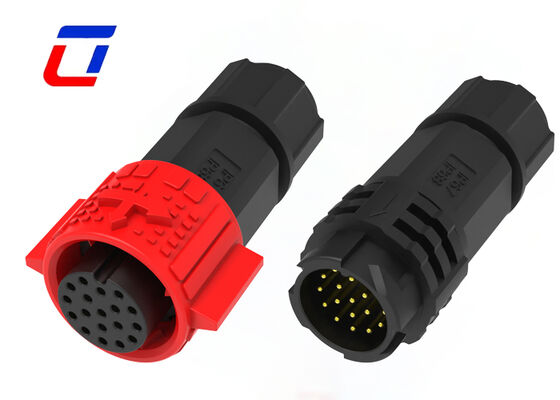

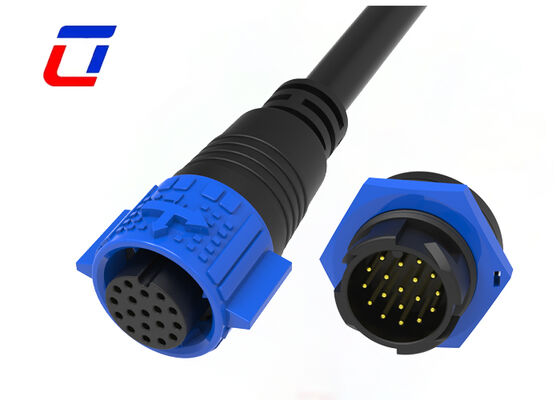

Name: PA66 18 Pin M19 Circular Connector OEM Low Voltage Wire Connectors Waterproof
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Circular Connector

PA66 18 Pin M19 Circular Connector OEM Low Voltage Wire Connectors Waterproof

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	18Pin	Current Rating:	5A
Rated Voltage:	300V	Flame-resistant Rating:	UL94-V0
Connector Type:	Male Female Connector	Material:	Nylon
Highlight:	PA66 M19 waterproof circular connector , 18 pin low voltage wire connector , OEM waterproof circular connector

PA66 18 Pin M19 Circular Connector - OEM Low Voltage Wire Connectors Waterproof

M19 18 Pin Circular Connector for Outdoor Signal Applications

Product Overview

Professional-grade M19 circular connectors designed for reliable outdoor signal transmission with quick-lock mechanism and waterproof protection.

Key Features

PA66 engineering plastic shell with superior strength and weather resistance
M19 circular structure for precise docking and vibration resistance
Push-lock quick release system for easy connection
Multiple pin configurations available: 2-18 pin options
Power and signal combination variants: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
Field assembly versions: wire-to-wire and wire-to-board options
20A current rating for continuous operation
Cable assembly services available
OEM/ODM customization supported

Material Specifications

Shell Material: High-quality PA66 engineering plastic with excellent mechanical strength, impact resistance, and deformation resistance. Resistant to high/low temperatures, UV aging, and corrosion for stable long-term performance in complex outdoor environments.

Electrical Parameters

Parameter	Specification
Number of Poles	18 Pin
Current Rating	5A maximum
Voltage Rating	300VAC maximum
Durability Voltage	1500VAC @ 60 seconds

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ maximum
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	300VAC maximum
Current Rating	5A maximum
Minimum Wire Size OD	3.0mm - 6.0mm
Maximum Wire Size OD	8.0mm - 10.0mm
Maximum Cable Cross Section Area	0.5mm² - 2.5mm²

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Design

Frequently Asked Questions

Are you a factory or trading company?

We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

How to track my shipment?

Once goods are shipped, we provide tracking numbers and logistics platform links for real-time status updates.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required. Flexible payment terms available for long-term trusted clients after successful orders.

How many materials can you provide?

We offer various materials including PVC/Nylon for connectors and PVC/Rubber/Silicone for cables. Custom material selection available based on requirements.
