Name: Push Locking 14 Pin Waterproof Connector M19 OEM Gold Plated Wire Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Price: Negotiable USD
Availability: InStock

Home Products Waterproof Circular Connector

Push Locking 14 Pin Waterproof Connector M19 OEM Gold Plated Wire Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	14Pin	Gender:	Male To Female
Current Rating:	5A	Material:	Nylon
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	M19 waterproof push lock connector , 14 pin gold plated connector , OEM waterproof circular connector

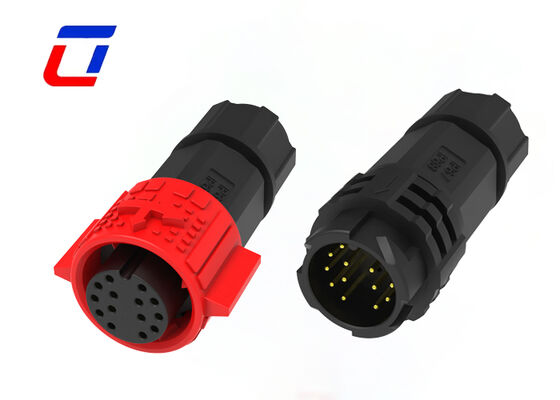

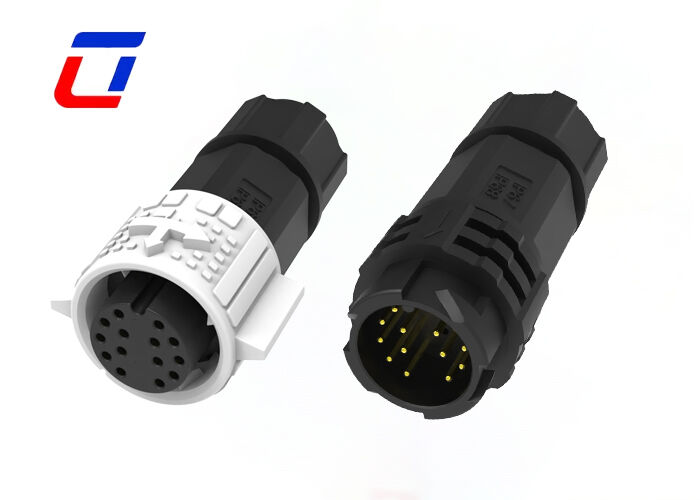

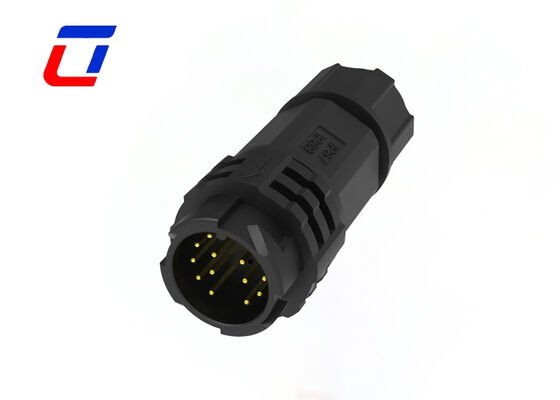

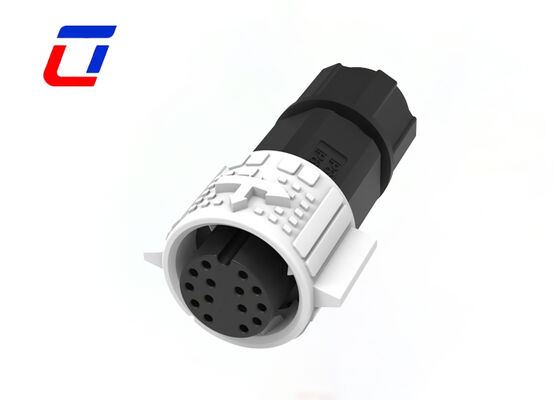

Push Locking 14 Pin Waterproof Connector M19 OEM Gold Plated Wire Connectors

Product Overview

This Push Locking 14 Pin Waterproof Connector M19 features gold-plated工艺 and OEM customization services. Designed for efficient and stable connection of various equipment, it integrates push locking convenience, excellent conductivity of gold-plated pins, and M19 specification adaptability. The product offers multiple advantages including waterproof, dustproof, corrosion resistance, and stable connection capabilities.

Widely applicable for wire connection needs in industrial control, outdoor communication, automotive electronics, and security monitoring fields.

Key Features

Push lock quick release system for stable connection and convenient operation
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM customization welcome

Technical Specifications

Electrical Parameters
Number of Poles	14Pin
Current Rating	5A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Design

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Q: Can I pay after receiving the goods?

A: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

Q: How many materials you can provide?

A: There are different materials available for connectors and cables. We usually use PVC/Nylon material to produce connectors, and PVC/Rubber/Silicone materials for cables. We can also choose materials according to your requirements.
