8 Pin Circular Connector M19 Male Female Wire Waterproof Connectors
Quick Description

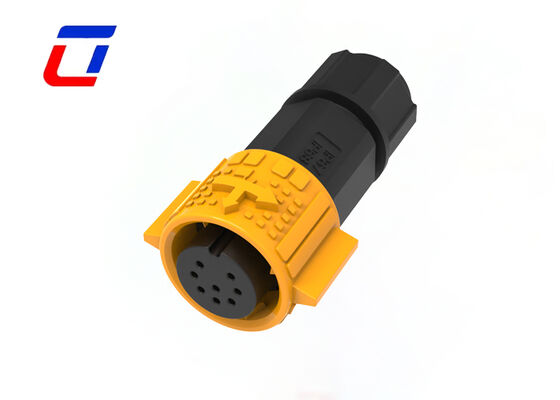

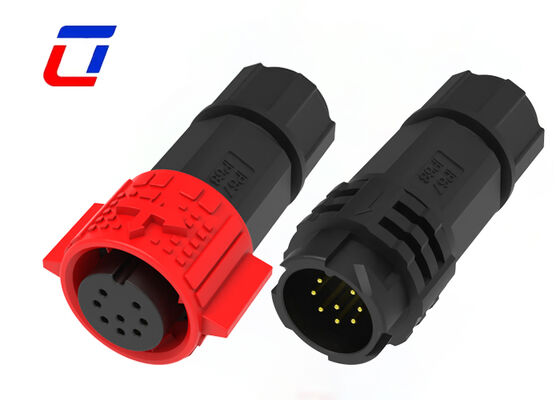

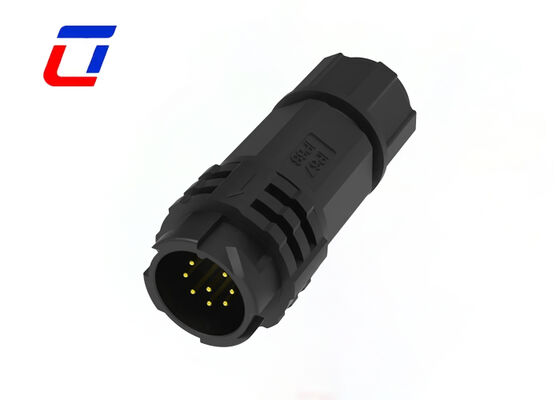

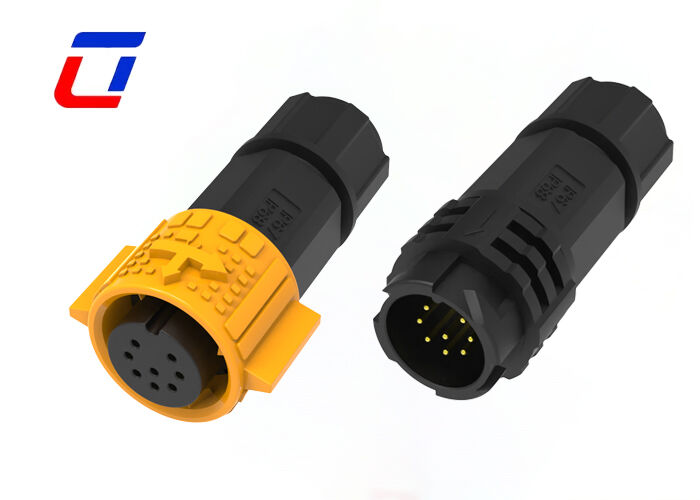

Designed specifically for outdoor data transmission scenarios, this M19 8-pin data connector features 300V voltage compatibility, IP67 protection and a quick-release structure as its core highlights. The expanded 8-pin layout supports multi-channel synchronous data transmission, and the male-female cable connection is paired with a one-click quick-release design for efficient installation and maintenance. The high-strength plastic housing can better resist erosion from complex outdoor environments.
Performance adapts to outdoor high-voltage data needs: gold-plated copper pins optimize contact performance and reduce signal loss; the 300V rated voltage breaks the limit of conventional low voltage, adapting to more industrial outdoor scenarios; IP67 dustproof and waterproof can withstand rain, spray and sand intrusion; the anti-electromagnetic interference structure effectively isolates outdoor electromagnetic radiation to ensure stable data transmission.
The quick-release structure balances convenience and reliability: the M19 size is paired with a snap-on quick-release design, enabling plugging and unplugging in 1 seconds without tools, and the foolproof alignment prevents wrong insertion; the plastic housing resists temperature from -40℃ to 105℃, with impact resistance and anti-aging properties; the tail is compatible with 0.5-1.5mm² wires, integrating sealing and locking to adapt to outdoor cable pulling scenarios.
Widely used in outdoor industrial control, high-voltage lighting signal systems, outdoor testing instruments, smart municipal equipment and other scenarios. The combination of 300V voltage adaptability and quick-release design makes outdoor data connection both safe and efficient, and can still transmit stably in severe weather.
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Current rated 10A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Application industries
- Growth Lights
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
| Electrical Parameters |
| Number of Poles |
8Pin |
| Current Rating |
10A max. |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1000VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 1.5mm2 |
