Name: M19 6 pin IP67 male female connector dustproof water tight connector For Signal
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Outdoor Waterproof Connector

M19 6 pin IP67 male female connector dustproof water tight connector For Signal

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	6Pin	Current:	10A
Rated Voltage:	300V	Waterproof Rating:	IP67
Connecting Mode:	Push Locking	Flame-resistant Rating:	UL94-V0
Highlight:	M19 6 pin waterproof connector , IP67 signal connector male female , dustproof waterproof connector for signal

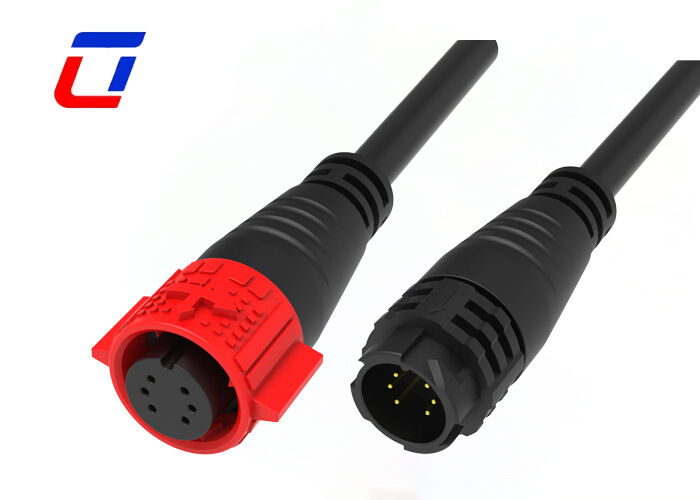

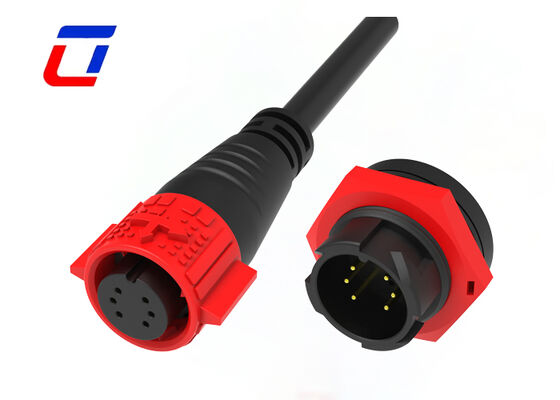

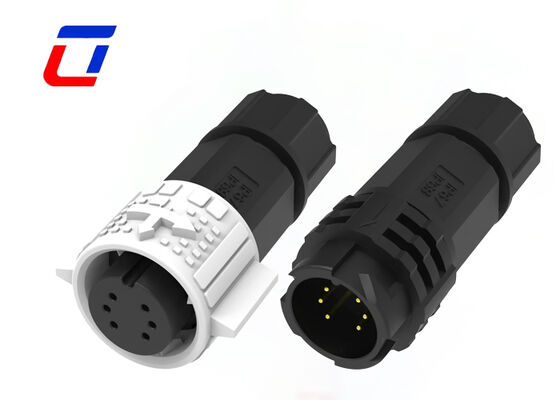

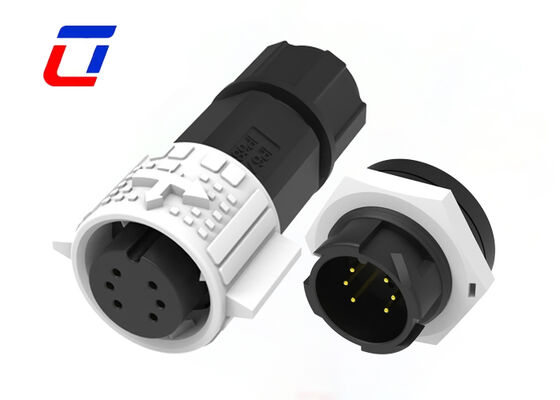

M19 6 pin IP67 male female connector dustproof water tight connector For Signal

Description of Industrial Waterproof Circular Connector

This M19 6-pin male-female connector features IP67 dustproof and waterproof performance as its core protection, specially designed for signal transmission scenarios. The precise 6-pin layout enables independent transmission of multiple signal channels, the male-female docking is smooth, and the PA66 housing is sturdy and durable, making it a reliable choice for signal connection in complex environments.

Performance focuses on signal stability and protection: gold-plated copper pins reduce transmission loss and ensure signal integrity; IP67 dustproof and waterproof rating can resist water immersion, spray and dust intrusion. The anti-electromagnetic interference design avoids signal crosstalk and is compatible with various low-voltage signal systems.

The male-female structural design is practical: M19 specification with foolproof alignment to eliminate wrong insertion; PA66 housing resists temperature from -40℃ to 105℃, suitable for harsh working conditions; the tail is compatible with 0.5-1.5mm² signal wires, integrating sealing and locking to improve connection reliability.

Widely used in security monitoring, industrial sensors, outdoor testing equipment, smart home and other scenarios, the dustproof and waterproof characteristics are suitable for complex environments, and the male-female quick-connect design makes signal connection and maintenance more efficient.

Main Feature

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for power
3+2,3+3,3+4,3+5,2+20Pin is Power and signal combination
9Pin,10Pin,12Pin,14Pin,16Pin,18Pin for signal
Field assembly version:both wire to wire and wire to board options
High current rated waterproof connector good choice up to 10A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	6Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

M19 6 pin IP67 male female connector dustproof water tight connector For Signal 0

More Technical Details

M19 6 pin IP67 male female connector dustproof water tight connector For Signal 1

FAQ

Q1:How to track my shipment?

A1:Once the goods are shipped, we will send you the tracking number and logistics platform link.You can track the real - time status online or contact our team for updates.

Q2:Do you accept other payment currencies besides USD?

A2: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Q3:Who is responsible for customs clearance? Do you provide necessary documents?

A3: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
