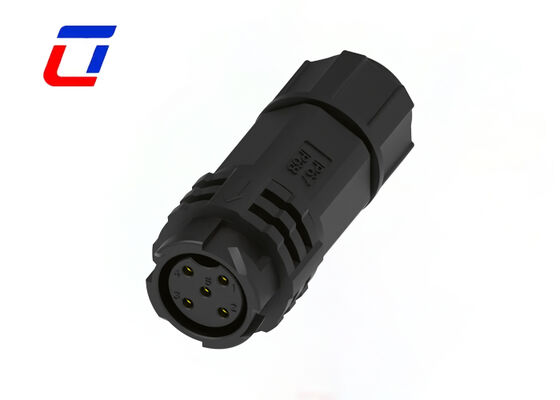

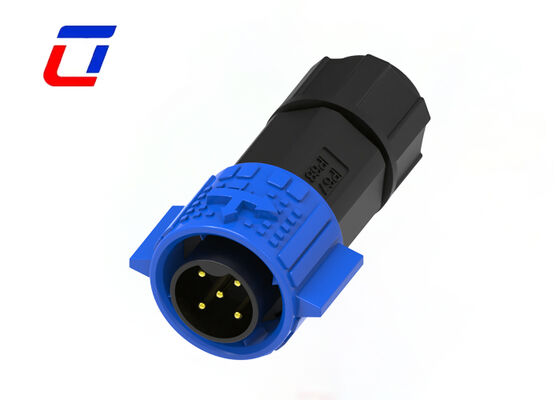

Name: High Efficiency Plastic Circular Connector M19 5 Pin 300V Waterproof Quick Lock Connection
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Circular Connector

High Efficiency Plastic Circular Connector M19 5 Pin 300V Waterproof Quick Lock Connection

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Rated Voltage:	300V	Pin:	5Pin
Flame-resistant Rating:	UL94-V0	Gender:	Male To Female
Operating Temperature:	-40℃~+105℃	Material:	Nylon
Highlight:	M19 waterproof circular connector , 5 pin quick lock connector , 300V plastic circular connector

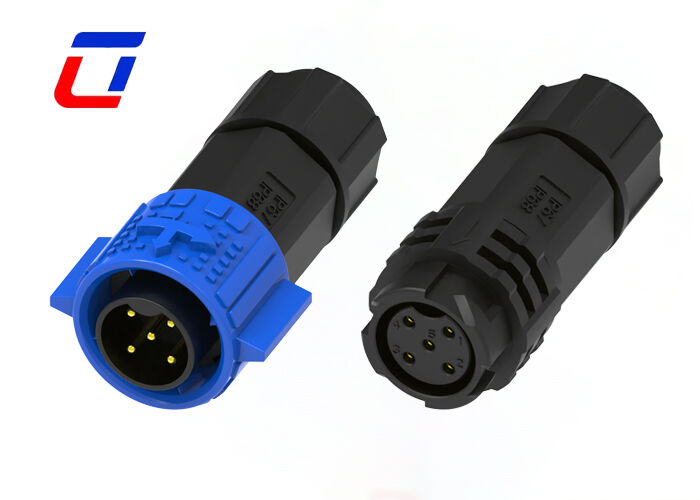

5 Pin Circular M19 PA66 300V Male To Female Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Quick Description

This M19 5-pin circular connector is made of high-strength PA66 material, supporting 300V high-voltage transmission. The male-to-female docking design combined with reliable waterproof performance makes it an ideal choice for multi-scenario power connections. The PA66 housing is weather-resistant and anti-aging, and the male-female plugging is smooth, balancing safety and practicality.

Performance focuses on high voltage and protection: high-conductivity copper pins reduce transmission loss, and the 300V rated voltage is compatible with high-voltage equipment; IP67 waterproof and dustproof, not afraid of rain and dust. The PA66 housing is high-temperature resistant and corrosion-resistant, combined with enhanced insulation, double avoiding high-voltage risks from material to structure.

The male-to-female structural design is user-friendly: M19 specification with foolproof alignment to avoid wrong insertion; PA66 housing resists temperature from -40℃ to 105℃, suitable for harsh environments; the tail is compatible with 0.5-2.5mm² wires, integrating sealing and locking to improve connection reliability.

Widely used in industrial control, high-voltage lighting, outdoor testing equipment and other scenarios, the PA66 material is suitable for complex working conditions, and the male-to-female quick-connect design makes installation and maintenance more efficient, ensuring stable power supply in high-voltage environments.

Electrical Parameters
Number of Poles	5Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch

FAQ

1. Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

2. Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
