M16 7 Pin Waterproof Connector 60V Low Voltage CE PA66 Data Cable Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	7Pin	Connector Type:	Male To Female
Current Rating:	5A	Rated Voltage:	60V
Material:	Nylon	Copper Needles:	Copper Alloy
Highlight:	M16 7 pin waterproof connector , 60V low voltage data connector , PA66 waterproof data cable connector

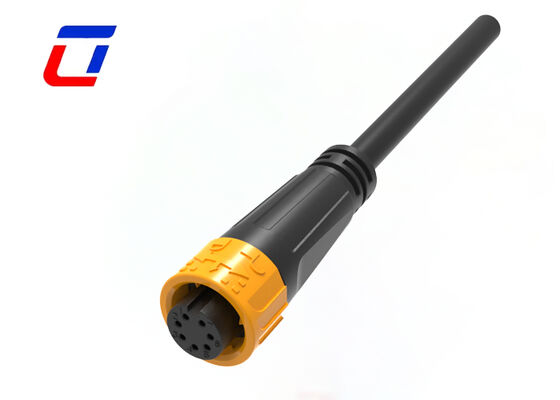

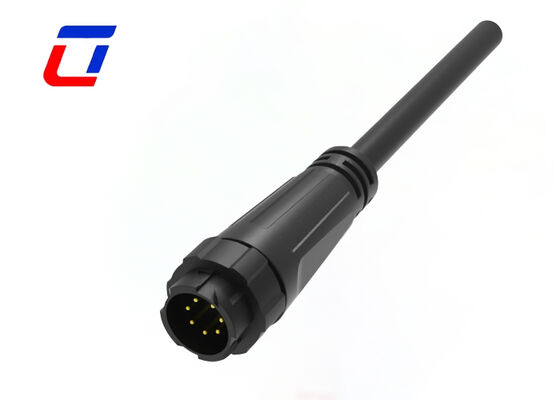

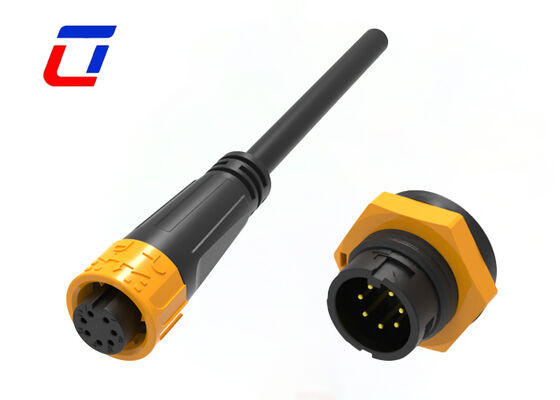

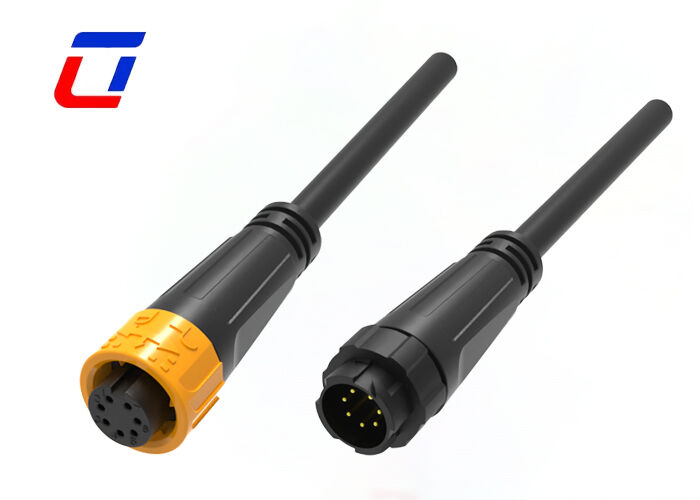

M16 7 Pin Waterproof Connector 60V Low Voltage CE PA66 Data Cable Connector

Product Overview

M16 Male Female 7 Pin Waterproof Automotive Connectors for Low Power Signal applications.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin
Field assembly version: wire to wire / wire to board
Cable assembly service supported, custom orders welcome
OEM/ODM welcome

Product Description

This M16-sized 7-pin waterproof connector is manufactured from PA66 engineering plastic and carries CE certification. Designed as a dedicated low-voltage data cable connection component with a rated voltage of 60V, it's specifically engineered for various data transmission scenarios.

The precise 7-pin layout enables independent and synchronous transmission of multiple data channels, while the male-female quick-plug structure accommodates efficient wiring and maintenance requirements.

Excellent waterproof performance and anti-interference capabilities ensure stable, accurate data transmission in complex environments, providing reliable connection assurance for data communication systems.

Core performance focuses on data transmission stability and low-voltage safety. The 7-pin contacts utilize high-purity copper alloy with gold plating, featuring contact resistance of ≤3mΩ to effectively reduce data transmission loss and ensure complete transmission of various low-voltage data signals.

Waterproof and dustproof performance reaches IP67 level through dual protection of professional sealing rubber rings and thread locking structure, completely isolating rainwater, humid water vapor, and environmental dust for outdoor and humid applications.

CE certified and compliant with low-voltage equipment safety standards, the connector features excellent anti-electromagnetic interference capability to resist radiation interference from surrounding electrical equipment and prevent data crosstalk.

Electrical Parameters

Number of Poles	7Pin
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Where is your factory located?

Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

How can I get samples?

We are pleased to offer samples, with freight to be paid by the customer. Please provide your courier account number and detailed address, and we will dispatch samples immediately.

How many materials can you provide?

We offer various materials for connectors and cables. Connectors typically use PVC/Nylon materials, while cables utilize PVC/Rubber/Silicone materials. We can also select materials according to your specific requirements.
