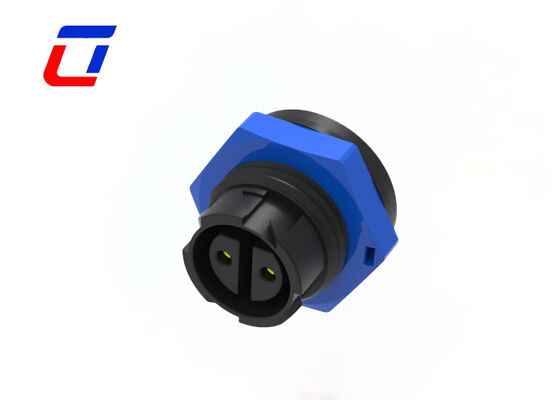

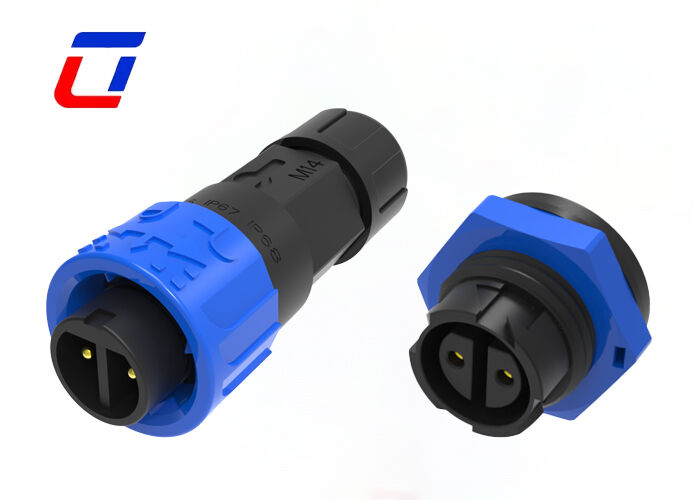

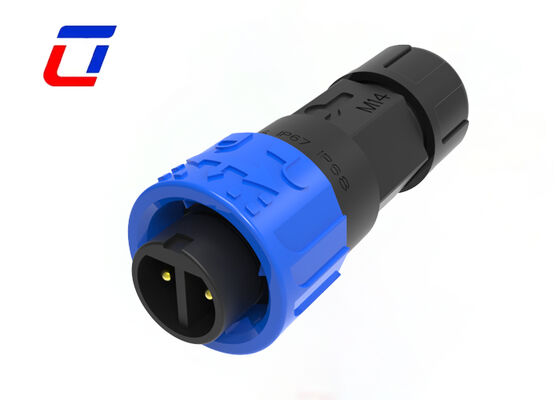

Name: 2 Pin Circular Power Connector M16 10A 300V Waterproof Male Female Plug Socket
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Circular Connector

2 Pin Circular Power Connector M16 10A 300V Waterproof Male Female Plug Socket

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	2Pin	Current:	10A Max. For Power
Rated Voltage:	300V	Waterproof Rating:	IP67
Flame-resistant Rating:	UL94-V0	Cable Gague:	20-18AWG
Highlight:	2 pin waterproof circular connector , M16 power connector 10A 300V , waterproof male female plug socket

2 Pin Circular Power Connector M16 10A 300V Waterproof Male Female Plug Socket

Description of Industrial Waterproof Circular Connector

This product is a 2-pin circular power connector, designed in accordance with the M16 standard specification. It is a professional-grade power connection solution integrating high stability and strong waterproof performance, perfectly adapting to the working scenarios with 10A current and 300V voltage. The paired design of male and female plugs and sockets can realize safe and efficient power transmission, and it is widely used in various equipment with strict requirements on connection reliability and environmental adaptability.

In terms of core performance, the connector has excellent electrical performance. The rated current of 10A and rated voltage of 300V can meet the power supply needs of most medium-power equipment. The contact resistance is small and stable, which can effectively reduce the loss during current transmission and ensure the operation efficiency of the equipment. Waterproof performance is its prominent advantage. Adopting a professional sealed structure design, the waterproof grade can reach IP67 and above. Even in harsh environments such as humidity, rain, and heavy dust, it can effectively block the intrusion of moisture and impurities, avoid safety hazards such as short circuits, and greatly extend the service life of the connection system.

Main Feature

Push lock quick easy release system
Multi-core can be choosen: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field-installable variants: both wire-to-wire and wire-to-board configurations
High-current-rated waterproof connector: an ideal solution for prolonged operation up to 10A
Cable assembly services provided – customization is welcome
OEM/ODM partnerships are warmly accepted

Electrical Parameters
Number of Poles	2Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

2 Pin Circular Power Connector M16 10A 300V Waterproof Male Female Plug Socket 0

More Technical Details

2 Pin Circular Power Connector M16 10A 300V Waterproof Male Female Plug Socket 1

FAQ

Q1:How do I place an order? What is the process?

A1:The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed;

3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Q2:Are your products certified? What certifications do you have?

A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q3:What shipping methods do you offer? How long is the delivery time?

A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
