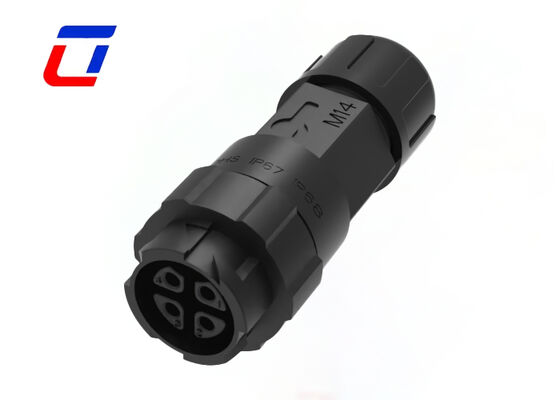

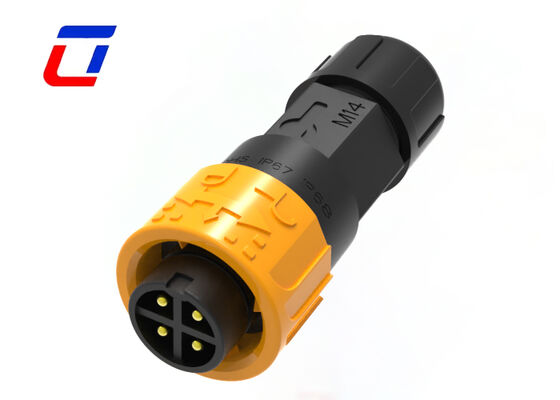

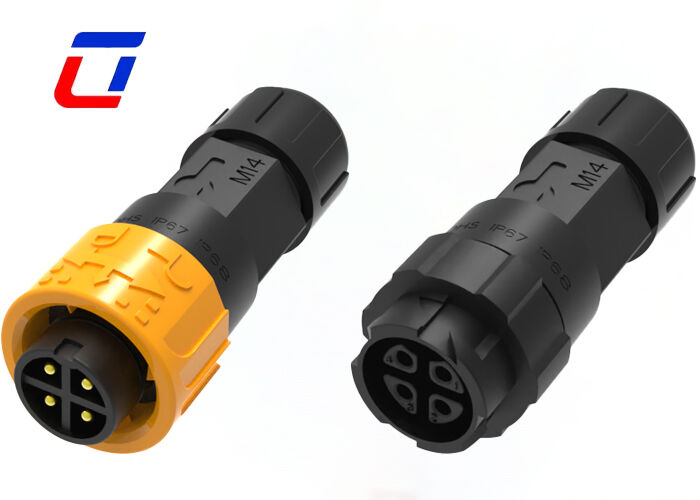

Name: 4 Pin LED Waterproof Connector M16 10A PA66 Push Locking Wire To Wire Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Circular Connector

4 Pin LED Waterproof Connector M16 10A PA66 Push Locking Wire To Wire Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Contacts:	4 Pin	Current:	Max 10A
Voltage Rating:	300 V	Waterproof Level:	IP67
Material Of Copper Needles:	Copper Alloy	Diameter Range:	MAX 9.00mm
Highlight:	4 pin waterproof LED connector , M16 wire to wire connector , PA66 locking circular connector

4 Pin LED Waterproof Connector , M16 10A PA66 Push Locking Wire To Wire Connectors

Description of Industrial Waterproof Circular Connector

This product is a 4-pin waterproof connector specially designed for LED lighting systems. It adopts M16 specification, with a rated current of 10A. The shell is made of high-strength PA66 engineering plastic, and it is equipped with a convenient push-locking structure to achieve stable and reliable wire-to-wire connection. Its excellent waterproof and moisture-proof performance and outstanding mechanical strength can effectively adapt to outdoor, humid and complex industrial environments, providing safe and durable circuit connection guarantee for LED street lights, landscape lighting, display screens and other equipment, and greatly reducing installation and maintenance costs.

Main Feature

Push lock quick release system,hassle-free operation.
Multic-core are available for selection: 2Pin,3Pin,4Pin,5Pin,2+4Pin,7Pin,8Pin.
Field assembly version:wire to wire / wire to board
High current rated waterproof connector good choice up to 10A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	4Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

4 Pin LED Waterproof Connector M16 10A PA66 Push Locking Wire To Wire Connectors 0

More Technical Details

4 Pin LED Waterproof Connector M16 10A PA66 Push Locking Wire To Wire Connectors 1

FAQ

Q1:Can I get a free sample before placing a bulk order?

A1:We offer free samples for standard models, but the shipping cost is at your expense. For customized samples, a small fee will apply and can be deducted from the formal order later.

Q2:Do you support product customization?

A2: Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

Q3:Can I pay after receiving the goods?

A3: For first - time cooperation, advance payment is required to ensure production smoothness. For long - term trusted clients, flexible payment terms can be discussed after several successful orders.
