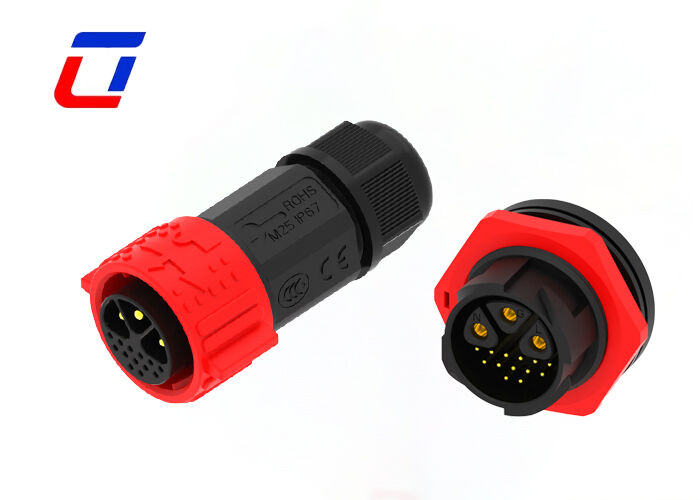

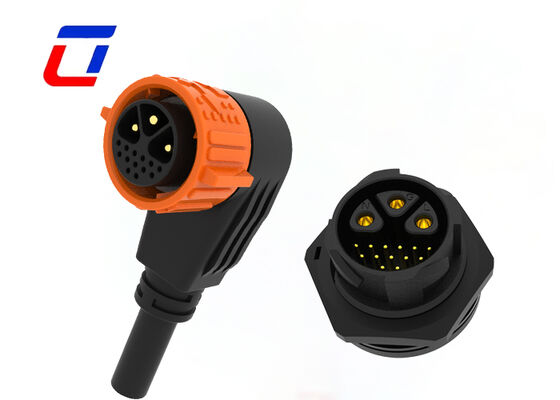

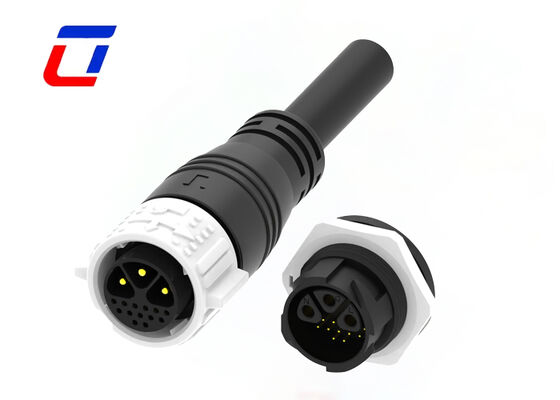

3+13 Pin Plug Socket Waterproof M25 Data And Power Connector IP67

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T, D/A, D/P, MoneyGram, L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Current:	15A	Number Of Pins:	3+13PIN
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Connection:	Wire To Board	Flame-resistant Rating:	UL94-V0
Highlight:	3+13 pin waterproof plug socket , M25 waterproof power connector IP67 , waterproof data connector with IP67

3+13 Pin Plug Socket Waterproof M25 Data And Power Connector IP67,Quick Locking

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin and 2+20Pin
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Quick Details of 12Pin Connector Male female

3+13 Pin Functional Partition, No Interference Between Power and Signal: 3 pins independently carry the main power, and 13 pins with high-density layout support multi-channel parallel data transmission (can be allocated to various sensors such as temperature and humidity, pressure, and displacement). Physical isolation + independent shielding design completely avoids the interference of power fluctuations on data signals, and the data transmission accuracy reaches 99.9%.

Quick-Lock Precise Docking, Efficient Outdoor Construction: The foolproof design of tapered guide post avoids equipment damage caused by pin misinsertion. The elastic locking tongue locks in one second. A single person can complete the installation when working at high altitudes or in narrow spaces outdoors, no tools are needed, and the construction efficiency is increased by more than 3 times.

IP67 Full-Scenario Protection, Adapt to Extreme Outdoor: Double fluororubber sealing + UV-resistant housing can resist heavy rain, sand and dust, high-temperature exposure and low-temperature freezing, and work continuously without failure in unshielded outdoor environments, meeting the harsh scenario needs of photovoltaic power stations, mine monitoring, outdoor cultural and tourism facilities, etc.

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Product Type Features
Connector System	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Configuration Features
Number of Positions	3+13
Number of Signal Positions	13
Contacts Preloaded	Yes
Electrical Characteristics
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Body Features
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Features
Contact Current Rating (Max) (A) .	15A max.
Circular Connector Contact Type	Pin-Socket
Mechanical Attachment
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Dimensions
Wire Size (AWG)	20AWG,18AWG,16AWG,14AWG,
Usage Conditions
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Industry Standards
UL Flammability Rating	UL 94V-0

More Technical Details

3+13 Pin Plug Socket Waterproof M25 Data And Power Connector IP67 0
