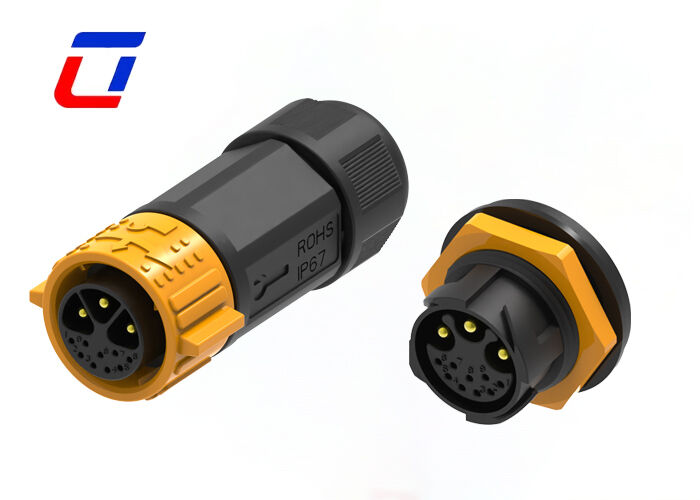

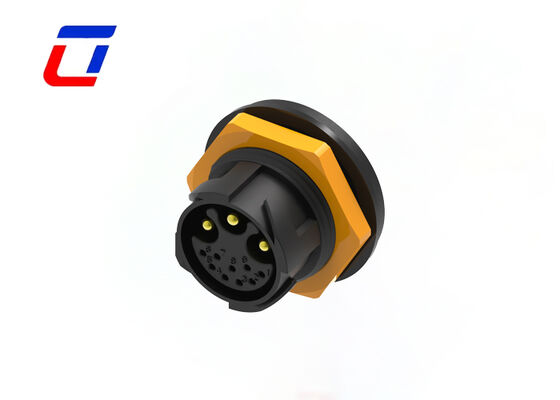

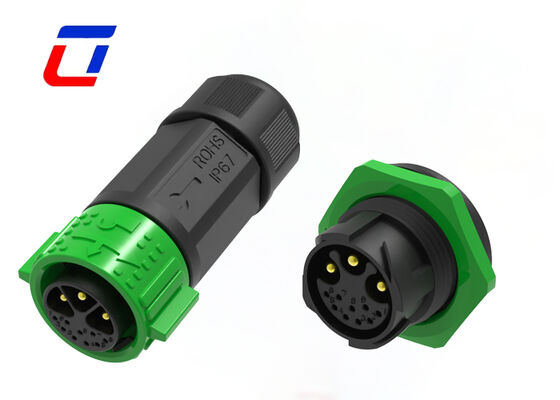

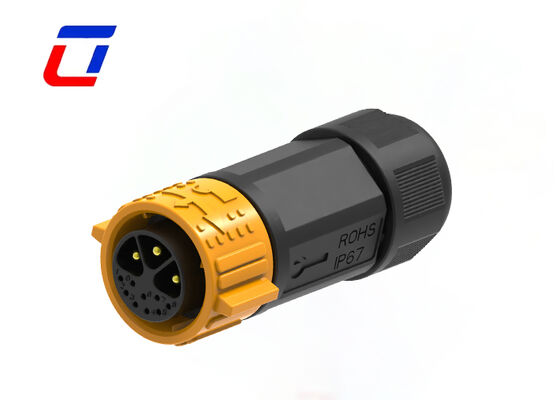

Multi Pin Connector Types Of 3+9 Pin M25 30A 300V Outdoor Waterproof Connector
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin and 2+20Pin
- Field assembly version:both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Quick Details of 6Pin Connector Male female
3+9 Pin Functional Subdivision, Adapt to Multi-Equipment Collaboration: 3 pins independently carry the main power, and 9 pins support multi-channel parallel signal transmission (can be allocated to sensors, controllers, status indicators, etc.), replacing the traditional combination of "1 power connector + 3 signal connectors", reducing the number of equipment interfaces by 75% and reducing the wiring error rate to 0.
Quick-Lock Foolproof Design, More Worry-Free Outdoor Operation: The foolproof guide groove structure avoids pin damage caused by misinsertion. The elastic buckle locks in one second, no need to carry wrenches and other tools. When working at high altitudes or in narrow spaces outdoors, a single person can complete the installation, greatly improving construction safety.
30A/300V Medium-Power Bearing, Wider Adaptability: The rated parameters perfectly match the needs of outdoor medium-power equipment. Compared with small-current connectors, the bearing capacity is increased by 100%.
IP67 Outdoor-Grade Protection, Strong Environmental Tolerance: Triple sealing + weather-resistant housing can resist heavy rain, sand and dust, high-temperature exposure and low-temperature freezing, and work continuously without failure in outdoor unshielded environments, meeting the long-term outdoor operation needs of photovoltaics, security, amusement equipment, etc.
Low Loss and Anti-Interference, More Stable Transmission: Oxygen-free copper silver-plated pin cores reduce current loss. The 9 sets of signal pins have independent shielding design to reduce crosstalk, especially suitable for remote data collection scenarios of industrial Internet of Things terminals.
M25 Universal Interface, Low Operation and Maintenance Cost: Compatible with 6-10mm² outdoor dedicated cables, and can be interchanged with M25 connectors of the same specification on the market. No need to replace cables when upgrading or repairing equipment. The 15,000 insertion and extraction life covers the full life cycle of the equipment, reducing operation and maintenance expenses.
| Product Type Features |
| Connector System |
Cable-to-Cable |
| Sealable |
Yes |
| Connector & Contact Terminates To |
Wire & Cable |
| Circular Connector Type |
Plug, Receptacle |
| Shell Type |
Plastic Shell |
| Product Type |
Connector Kit |
| Configuration Features |
| Number of Positions |
3+9 |
| Number of Signal Positions |
9 |
| Contacts Preloaded |
Yes |
| Electrical Characteristics |
| Operating Voltage (VAC) |
600V max. |
| Operating Voltage (VDC) |
600V max. |
| Body Features |
| Shell Material |
PA66 |
| Circular Connector Insulation Material Type |
Low Fire Hazard Thermoplastic |
| Hermetically Sealed |
Yes |
| Entry Style |
Side |
| Environmental Protection Type |
Elastomer Sealed, Hermetically Sealed |
| O-Ring Material |
Elastomer Sealed, Hermetically Sealed |
| Environmental Protection |
Yes |
| Contact Features |
| Contact Current Rating (Max) (A) . |
15A max. |
| Circular Connector Contact Type |
Pin-Socket |
| Mechanical Attachment |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Mating Alignment Type |
Keyed |
| Mating Retention |
With |
| Dimensions |
| Wire Size (AWG) |
20AWG,18AWG,16AWG,14AWG, |
| Usage Conditions |
| Operating Temperature Range (°C) |
-40 ~105°C |
| IP Water Sealing Level |
IP67 |
| IP Dust Sealing Level |
6 |
| Industry Standards |
| UL Flammability Rating |
UL 94V-0 |
Production Dimension
More Technical Details
FAQ
Q1:What is rated voltage?
A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q2:What if there are quality issues with the received goods?
A2: Please provide photos/videos of the defective products within 7 days of receipt. We will verify the issue and offer solutions such as free replacement, repair, or partial refund based on the situation.
Q3:How to choose the suitable connector?
A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm the next.
* Confirm Cable guage
* Confirm Cable Length and Material.
