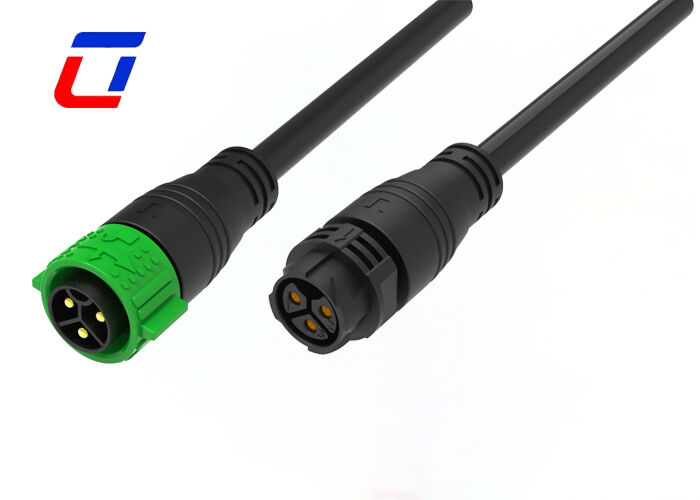

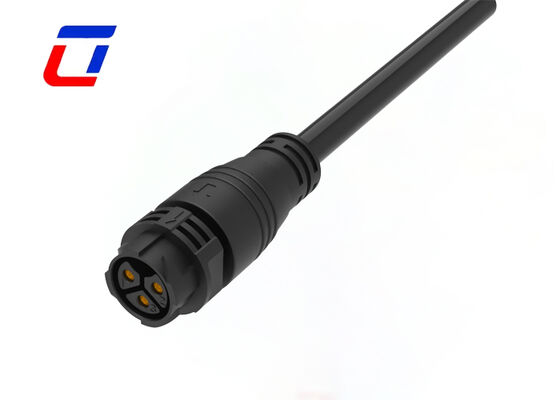

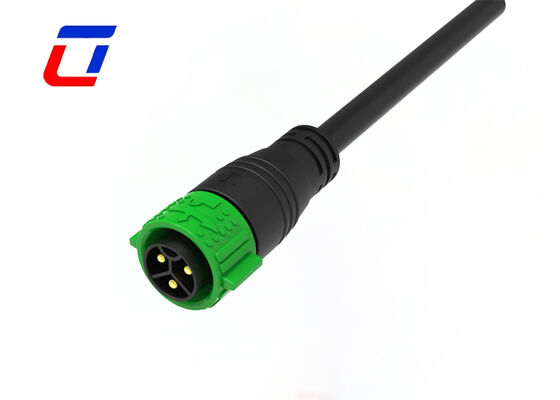

Industrial Circular Connector M25 3 Pin 50A IP67 Waterproof Connector
Description:
Industrial Circular Connector M25 3 Pin 50A IP67 Waterproof Connector is a high-reliability power connection solution tailored for harsh industrial environments. With its stable high-current transmission capability and excellent environmental adaptability, it has become a core connection component for industrial automation, new energy and outdoor operation equipment. Adopting a standardized M25 circular structure design, the 3-pin core layout accurately matches the three-phase or multi-circuit DC/AC power supply requirements, with a rated working current of up to 50A, which can easily carry the power transmission tasks of medium and high-power equipment. Equipped with IP67 waterproof and dustproof performance, it can effectively resist splashing, immersion, dust and oil pollution, making it suitable for complex working conditions with humidity, dust and frequent vibration.
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Quick Details of IP67 waterproof Connector
This model of connectors is engineered for a wide range of integrated power and signal applications, boasting an intuitive push-to-lock mechanism. Insertion takes just one second, with the connector locking securely automatically—no complex operations required.
The integrated power-and-signal all-in-one design is gaining escalating popularity across diverse equipment. It effectively eliminates the need for separate power and signal connectors, offering an optimal solution especially for space-constrained installations.
Ulinkcon provides professional cable assembly solutions for multi-pin connectors. Simply submit your detailed cable specifications (e.g., gauge, length, insulation type), and our comprehensive customization support is readily available to meet your specific requirements.
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
600VAC max |
| Current Rating |
50A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 6.0mm2 |
Product Configuration
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: Do you support product customization?
A: Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
