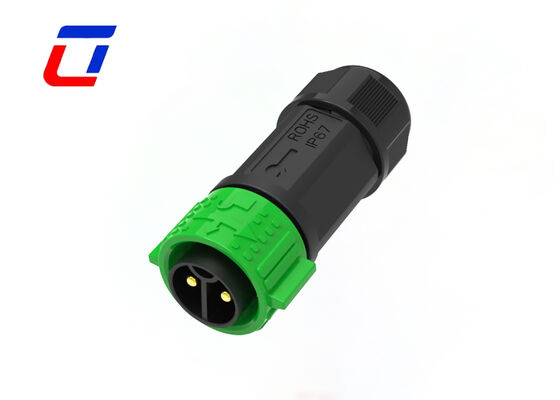

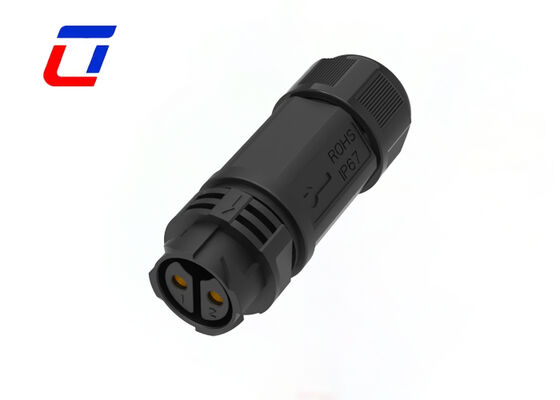

M25 2 Pin Waterproof DC Power Connector 50A Male To Female Connectors
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5+2Pin and 2+20Pin available
- Field assembly version:both wire to wire and wire to board options
- High current rated waterproof connector good choice up to 50A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Quick Details of 2Pin waterproof Panel Connector

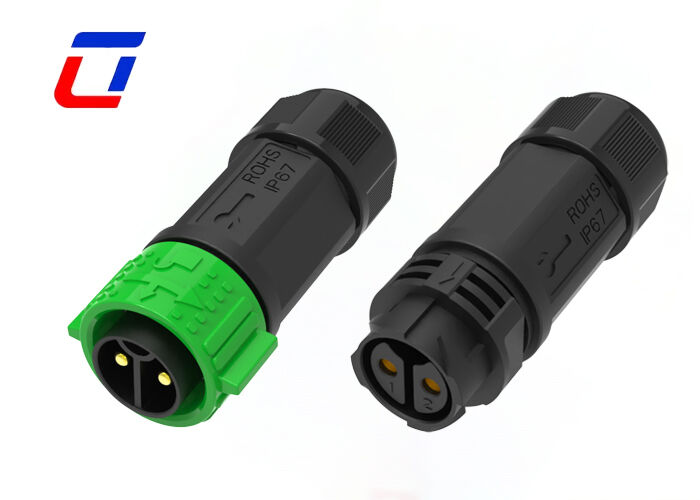

M25 2 Pin Waterproof DC Power Connector 50A (Male to Female) is a high-performance connecting device specially designed for high-current DC power supply scenarios. It is mainly suitable for DC power supply systems and is widely used in various outdoor and harsh environment equipment that require stable DC power supply, relying on its excellent waterproof performance and stable conductivity.
Adopting standard M25 thread specification, the 2-pin core structure accurately matches the corresponding circuit interface, and the male-female docking design enables quick plugging and reliable connection. With a rated current of up to 50A, it can meet the power supply needs of medium and high-power equipment such as new energy vehicle charging, outdoor communication base stations, industrial automation equipment, marine equipment and solar photovoltaic systems.
The connector adopts high-quality PVC shell with aging resistance and corrosion resistance as a whole, and the internal pin core is made of high-purity brass material, which is gold-plated. This not only effectively reduces the contact resistance, reduces the heat loss during current transmission, but also improves the oxidation resistance and prolongs the service life.
The product has a waterproof grade of IP67 or above. Combined with the threaded locking structure, it can effectively resist the erosion of harsh environments such as rainwater, dust and oil stains, ensuring stable operation even in humid, dusty or even short-term water immersion scenarios, and providing all-round safety guarantee for equipment power supply.
| Electrical Parameters |
| Number of Poles |
2Pin waterproof connector |
| Current Rating |
50A max |
| Voltage Rating |
600VAC max |
| Durability Voltage |
2500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
600VAC max |
| Current Rating |
50A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 6.0mm2 |
Production Dimension
More Technical Details
FAQ
Q1:Are your products certified? What certifications do you have?
A1:All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q2:What is rated Current?
A2: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
Q3:Who is responsible for customs clearance? Do you provide necessary documents?
A3: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
