Name: Quick Release Wire Connector M19 3+9 Pin OEM Waterproof 300V Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Price: Negotiable USD
Availability: InStock

Home Products Waterproof Data Connector

Quick Release Wire Connector M19 3+9 Pin OEM Waterproof 300V Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+9 PIN	Current:	15A
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Material:	Nylon	Connecting Mode:	Push Locking
Highlight:	M19 waterproof wire connector , 3+9 pin quick release connector , 300V waterproof data connector

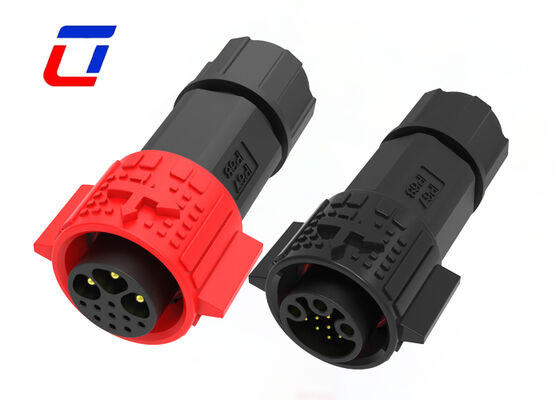

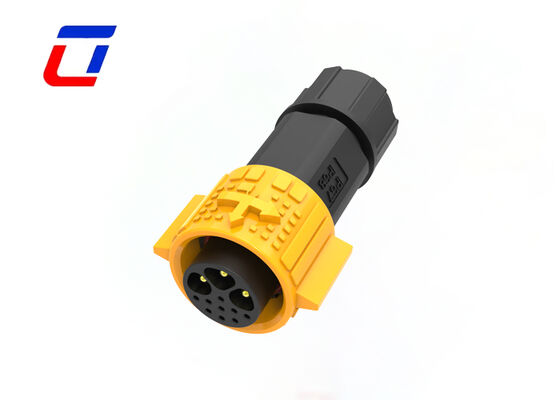

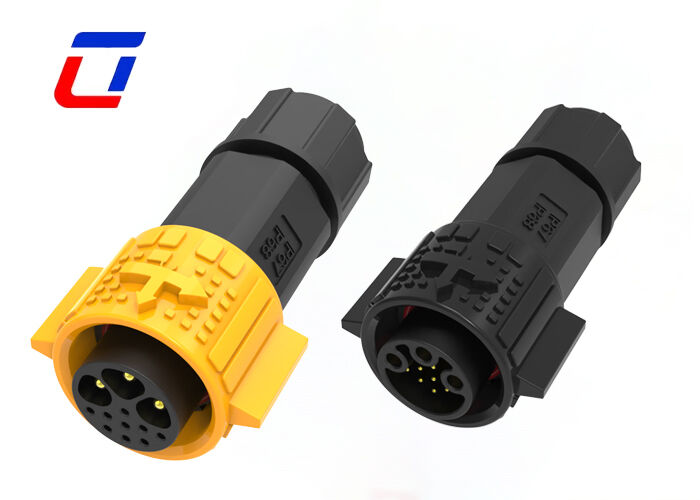

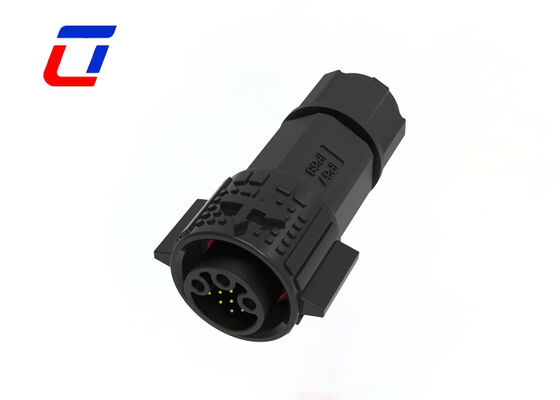

Quick Release Wire Connector M19 3+9 Pin OEM Waterproof 300V Connector

Product Overview

The M19 3+9 Pin Quick Release OEM Waterproof Connector is an industrial-grade wire connector supporting customization. It features an independent structure of 3-pin main power and 9-pin data signal, with a rated voltage of 300V, combined with IP67 waterproof performance and a convenient quick-release mechanism.

Designed specifically for scenarios requiring efficient plugging and personalized needs, it serves as an OEM-exclusive solution that can flexibly adapt to various equipment interfaces, achieving stable power supply and accurate multi-channel data transmission.

Quick Release Mechanism

Innovatively adopts a push-type quick release structure, which can complete unlocking and separation without tools. Compared with traditional threaded connections, plugging efficiency is increased by 70%. In the locked state, fixed by double buckles effectively prevents accidental disconnection during equipment operation or transportation.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Technical Specifications

Specification	Details
Connector System	Cable-to-Cable
Sealable	Yes
Shell Material	PA66
Number of Poles	3+9
Current Rating	15A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s
Operating Temperature	-40°C to 105°C
IP Rating	IP67
Durability Rating	250, 251 Cycles
UL Flammability Rating	UL 94V-0

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.

What is rated current?

Rated current, also known as operating current. When operating below rated voltage, connectors generally work properly. The connector design meets rated current requirements through thermal design, as current flow generates heat due to conductor and contact resistance.

Do you accept other payment currencies besides USD?

Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
