Name: Waterproof Wire To Wire Connector M19 3+3 Pin 15A Quick Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Price: Negotiable USD
Availability: InStock

Home Products Outdoor Waterproof Connector

Waterproof Wire To Wire Connector M19 3+3 Pin 15A Quick Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+3PIN	Waterproof Rating:	IP67
Current:	15A	Temperature Range:	-40℃~+105℃
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	Waterproof M19 wire connector , 3+3 pin quick connector , Outdoor waterproof 15A connector

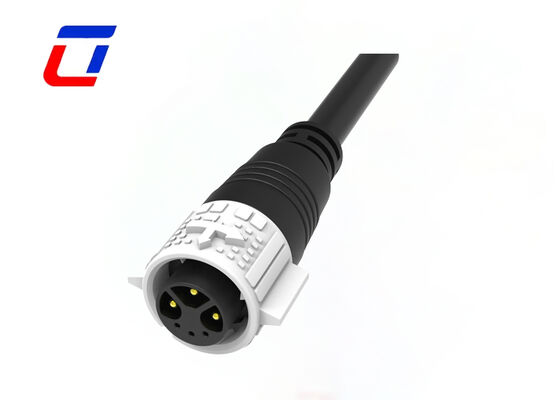

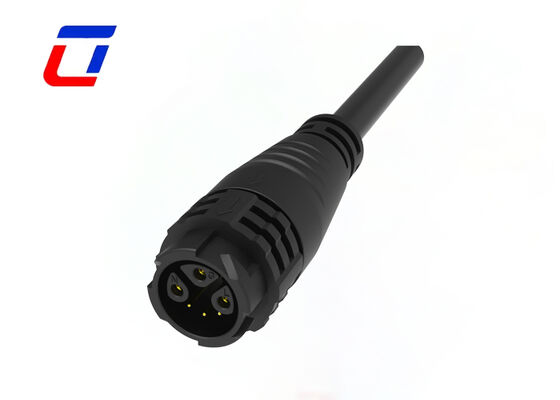

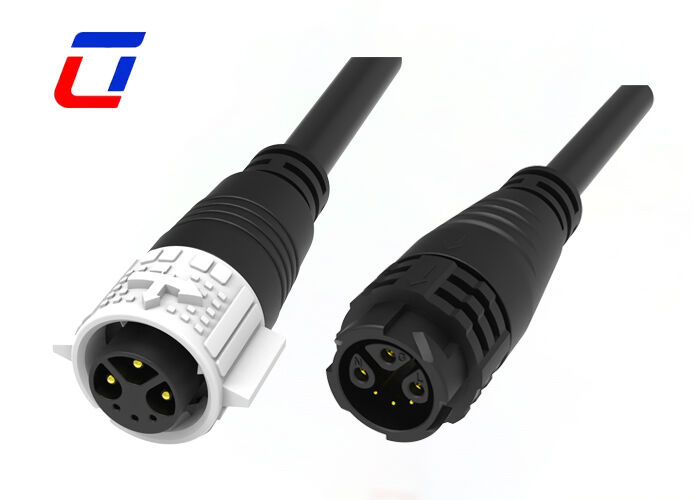

Waterproof Wire To Wire Connector M19 3+3 Pin 15A Quick Connector

Product Overview

This M19 3+3 Pin waterproof connector features a push-lock quick release system designed for industrial applications requiring both power and signal transmission in harsh environments.

Main Features

Push lock quick release system for easy connection
Multiple core configurations available: 2Pin, 3Pin, 4Pin, 5Pin for power
Power+signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions available for both wire-to-wire and wire-to-board applications
Rated for 20A continuous operation
Cable assembly services supported with customization options
OEM/ODM services welcome

Technical Specifications

Product Type Features	Connector System: Cable-to-Cable Sealable: Yes Connector & Contact Terminates To: Wire & Cable Circular Connector Type: Plug, Receptacle Shell Type: Plastic Shell Product Type: Connector Kit
Configuration Features	Number of Positions: 3+3 Number of Signal Positions: 3 Contacts Preloaded: Yes
Electrical Characteristics	Operating Voltage (VAC): 600V max. Operating Voltage (VDC): 600V max.
Body Features	Shell Material: PA66 Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic Hermetically Sealed: Yes Entry Style: Side Environmental Protection Type: Elastomer Sealed, Hermetically Sealed O-Ring Material: Elastomer Sealed, Hermetically Sealed Environmental Protection: Yes
Contact Features	Contact Current Rating (Max): 15A max. Circular Connector Contact Type: Pin-Socket
Mechanical Attachment	Connector Mounting Type: Cable Mount (Free-Hanging) Mating Alignment Type: Keyed Mating Retention: With
Dimensions	Wire Size (AWG): 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions	Operating Temperature Range: -40°C to 105°C IP Water Sealing Level: IP67 IP Dust Sealing Level: 6
Industry Standards	UL Flammability Rating: UL 94V-0

Application Industries

Communications Product Coding Machines Inventory Product Coding Inkjet Systems Solar Systems Industrial Inkjet Equipment Electric Power Equipment Laboratory Forensic & Pathology Equipment Communications Equipment Heavy Machinery

Production Dimensions

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

Rated voltage, also known as operating voltage, depends primarily on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.

Q2: Who is responsible for customs clearance? Do you provide necessary documents?

We provide complete customs clearance documents including commercial invoice, packing list, bill of lading, and certification reports. Customs clearance fees and duties are the responsibility of the buyer under EXW/FOB terms. We can assist with document preparation as needed.

Q3: How to choose the suitable connector?

Follow these steps to select the appropriate connector:

Confirm current rating and number of contacts required
Determine if pre-cable assembly is needed
Specify cable gauge requirements
Confirm cable length and material specifications
