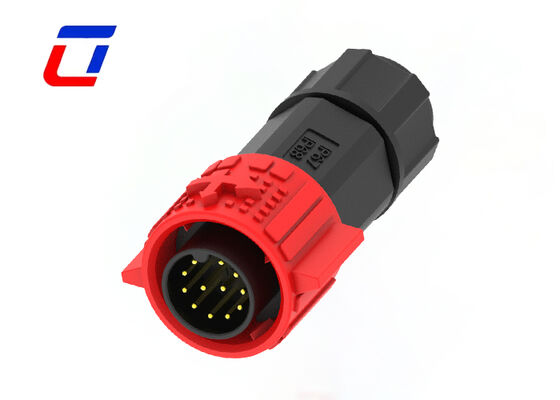

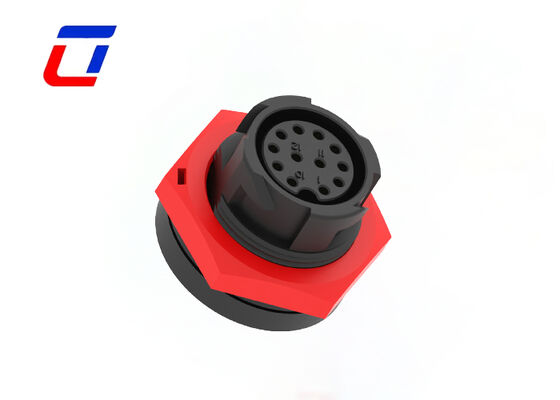

Waterproof Plug And Socket 12 Pin IP67 M19 Circular Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	5A	Pin:	12Pin
Rated Voltage:	300V	Gender:	Male To Female
Connector Type:	Quick Connector	Material:	Nylon
Color:	White Blue Red Black Yellow	Operating Temperature:	-40℃-+105℃
Highlight:	12 pin waterproof circular connector , IP67 M19 circular plug , waterproof socket 12 pin

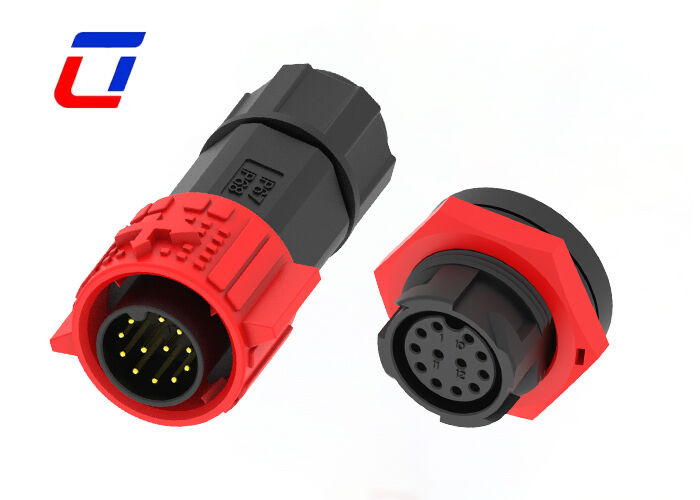

Waterproof Plug And Socket 12 Pin IP67 M19 Circular Connectors

M19 12-Pin IP67 Waterproof Plug & Socket - Circular Connectors engineered for reliable wet-environment applications. Boasts IP67 dust/waterproof rating, corrosion-resistant housing, and secure 12-pin connectivity to ensure stable signal/power transmission. Easy to mate and install, durable for long-term use in industrial equipment, outdoor electronics, lighting systems, and marine devices. Ideal for demanding environments requiring robust, moisture-proof electrical connections.

This model connectors is specialized for various power applications, easy operation design in push locking system, just need a second to insert, then it will lock automatically.

In this model connector, Power & Signal together in one set design is getting more and more popular to many devices, which solves the power and signal connector separated using perfectly, especially for space-limited applications.

Cable assembly available for Multi pin Connectors is supported in Ulinkcon. Please share cable request in details, custom service available.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical & Technical Parameters

Electrical Parameters
Number of Poles	12 Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Q: How can I get samples?

A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.

Q: How many materials you can provide?

A: There's some different materials from connector and cable. We usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.
