Name: 8 Pin Circular Connector M19 Male Female Wire Waterproof Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Price: Negotiable USD
Availability: InStock

Home Products Waterproof Cable Connector

8 Pin Circular Connector M19 Male Female Wire Waterproof Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	8Pin	Gender:	Male To Female
Current Rating:	5A	Connector Type:	Quick Connector
Material:	Nylon	Rated Voltage:	300V
Operating Temperature:	-40℃-+105℃	Flame-sesistant Rating:	UL 94-V0
Highlight:	8 pin waterproof circular connector , M19 male female wire connector , waterproof cable connector with warranty

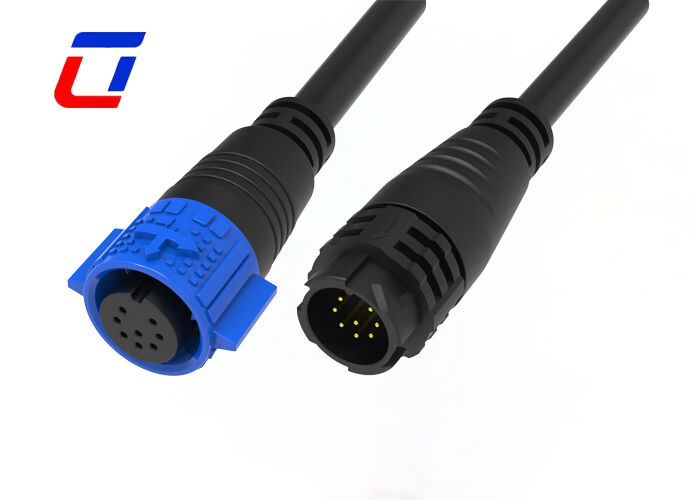

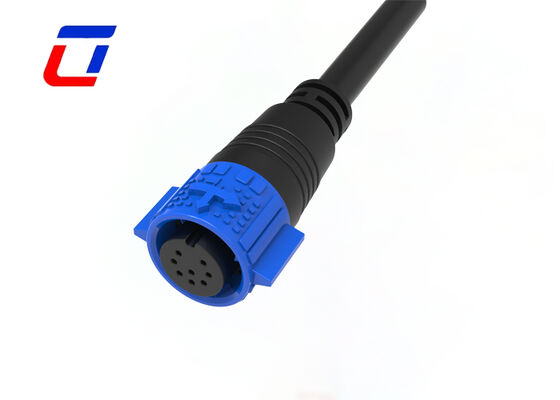

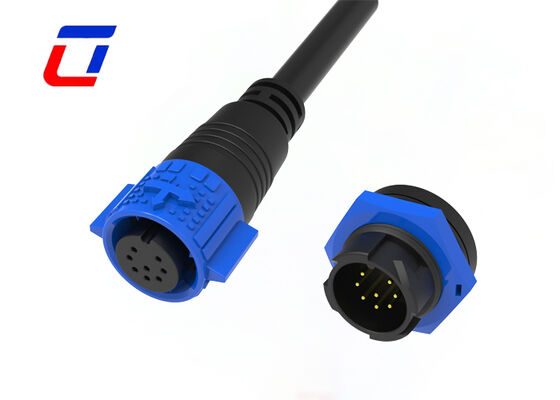

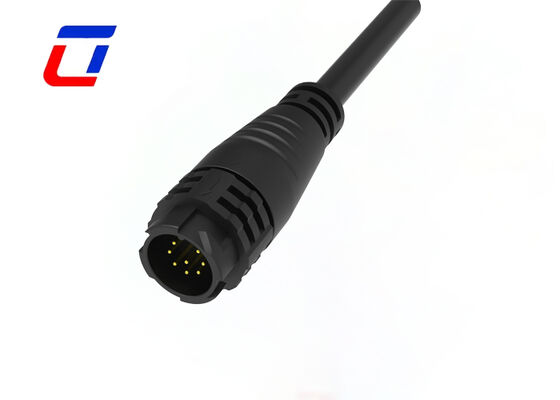

8 Pin Circular Connector M19 Male Female Wire Waterproof Connectors

This model connector is specialized for various signal/data applications, featuring an easy operation design with push locking system. Simply insert and it locks automatically.

The male-female circular structure features a tight anti-vibration locking mechanism, preventing accidental disconnection caused by mechanical impact or operational vibration. Crafted from high-grade weather-resistant plastic housing and corrosion-resistant metal contacts, it boasts excellent durability and long service life even in harsh conditions like saltwater exposure or chemical corrosion.

Cable assembly available for multi-pin connectors is supported. Please share detailed cable requirements for custom service.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters

Number of Poles	8Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: What payment methods do you accept?

A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Q: How can I get samples?

A: We are pleased to offer samples, and the freight should be paid by yourself. Please provide your courier number and detailed address, and we can send you samples immediately.

Q: How many materials can you provide?

A: We offer various materials for connectors and cables. We typically use PVC/Nylon material for connectors and PVC/Rubber/Silicone material for cables. We can also select materials according to your requirements.
