6 Pin IP67 Connector M19 Dustproof Waterproof Wire Splice Connector
Description of Industrial Waterproof Circular Connector

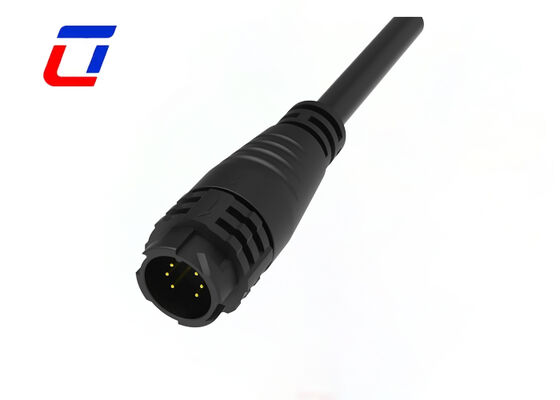

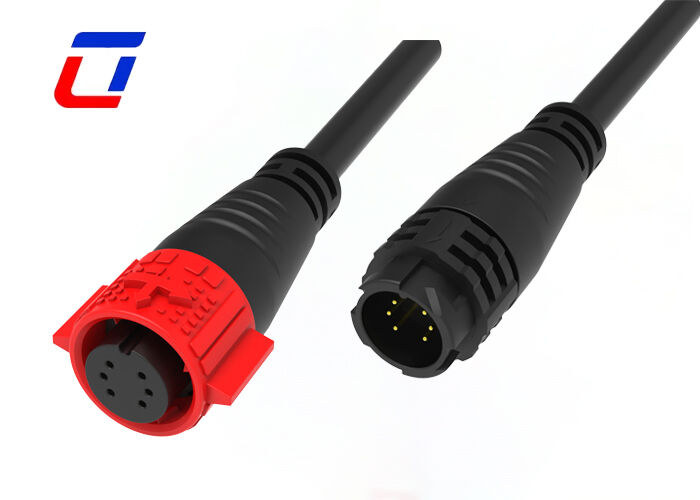

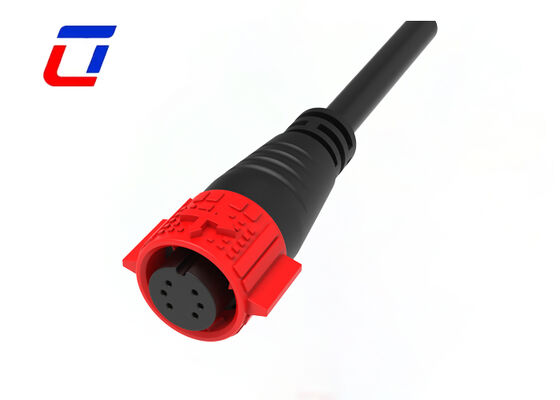

The 6 Pin IP67 M19 Dustproof Waterproof Wire Splice Connector is a high-performance connectivity solution engineered for reliable wire-to-wire connection in harsh environments.
Designed with a standard M19 thread size and 6-pin configuration, this connector integrates robust dustproof and waterproof capabilities, making it an ideal choice for applications where electrical connections are exposed to moisture, dust, splashes, or temporary immersion.
Whether used in industrial automation, outdoor electronics, automotive accessories, or marine equipment, it ensures stable signal and power transmission, effectively extending the service life of connected devices.
It's also a good choice for the applications which requests wire connections in soldering with the suitable contact pin size.
Main Feature
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for power
- 3+2,3+3,3+4,3+5,2+20Pin is Power and signal combination
- 9Pin,10Pin,12Pin,14Pin,16Pin,18Pin for signal

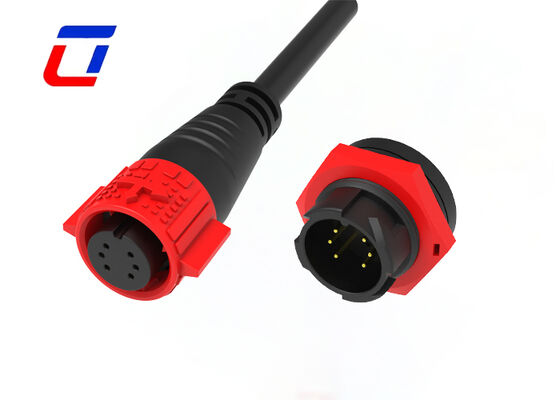

- Field assembly version:both wire to wire and wire to board options
- High current rated waterproof connector good choice up to 10A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
| Electrical Parameters |
| Number of Poles |
6Pin waterproof connector |
| Current Rating |
10A max |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1000VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Production Dimension
More Technical Details
FAQ
Q1:What is rated voltage?
A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q2:What is rated Current?
A2: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
