5 Pin Circular M19 PA66 300V Panel Mount Waterproof Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	10A	Rated Voltage:	300V
Pin:	5Pin	Gender:	Male To Female
Flame-resistant Rating:	UL94-V0	Material:	Nylon
Highlight:	5 pin M19 waterproof connector , PA66 panel mount connector , 300V waterproof circular connector

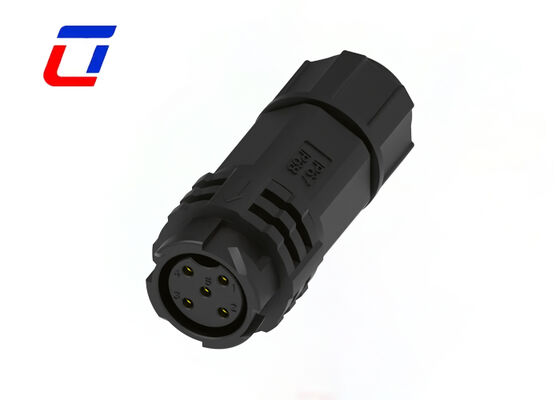

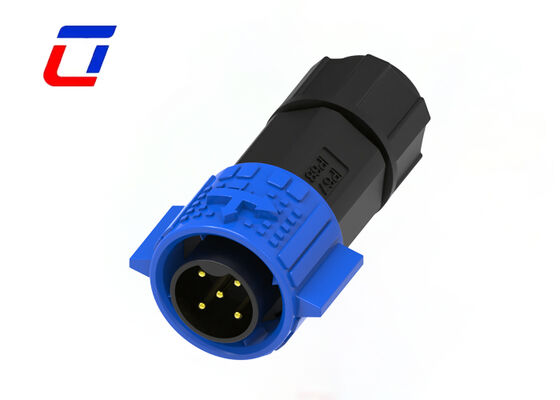

5 Pin Circular M19 PA66 300V Panel Mount Waterproof Connector

Product Overview

This 5-pin circular panel mount waterproof connector, featuring M19 thread size, PA66 housing and 300V rated voltage, is engineered to deliver reliable signal and power transmission in harsh operating environments. Specifically designed for panel installation, it integrates seamlessly with various equipment panels via a secure threaded fastening structure, while its compact circular shape ensures easy plugging and unplugging, making it an ideal choice for industrial automation, new energy systems, security monitoring and outdoor electronic devices.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters

Number of Poles	5Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Design Sketch

Frequently Asked Questions

Are you a factory or trading company?

We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

How can I get samples?

It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.

How many materials you can provide?

There's some different materials from connector and cable. We usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.
