M19 2Pin 20A Push Lock Power Waterproof High Current Power Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	2PIN	Current:	20A
Connector Type:	Self-locking Male To Female	Color:	Black Blue White Red Yellow
Material:	PA66&Copper Alloy	Wire Size:	14~20 AWG
Voltage Rating:	300V	Flame-resistant Rating:	UL94-V0
Highlight:	M19 2Pin waterproof power connector , 20A high current push lock connector , waterproof power connector with push lock

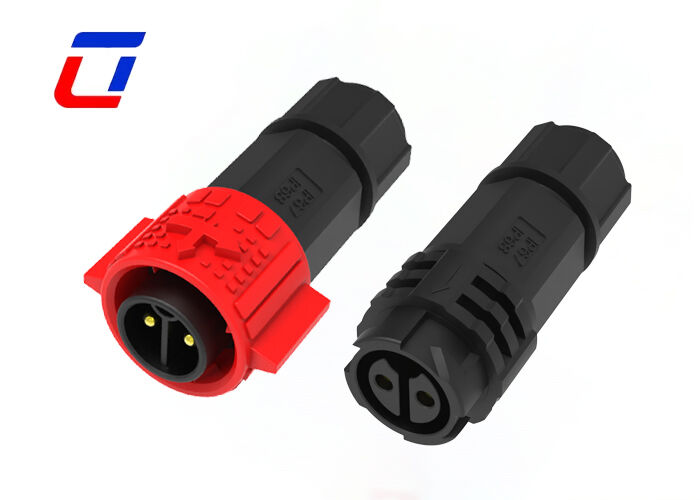

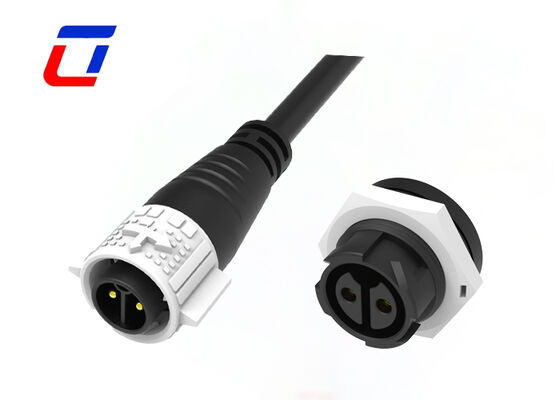

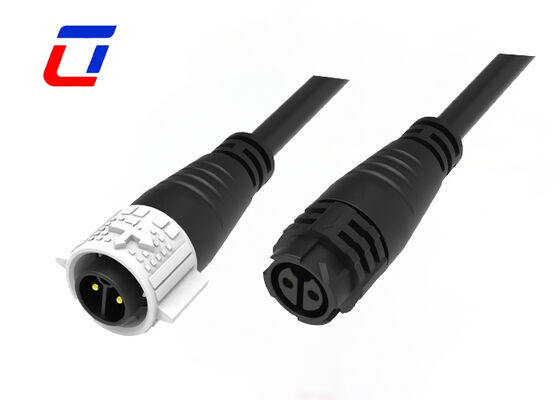

M19 2Pin 20A Push Lock Power Waterproof High Current Power Connector

M19 2PIN 20A Push Lock Power Waterproof Circular Connectors For Wires

Main Features

Push lock quick easy release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Ulinkcon's 20A M19 Push Lock 2Pin Waterproof Circular Connector is engineered for diverse integrated power and signal applications. Featuring a user-friendly push-lock mechanism, it inserts in just one second and locks securely automatically. The integrated power and signal design is growing in popularity across devices, perfectly eliminating the need for separate connectors—ideal for space-constrained setups. We offer cable assembly for multi-pin connectors; simply provide your specific cable requirements, as customization services are available.

Product Type Features

Connector System	Cable-to-cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, socket
Shell Type	Plastic Shell
Product Type	Connector Kit

Electrical Characteristics

Number of Poles	2
Current Rating	20A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Body Features

Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes

Usage Conditions

Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Durability Rating (Cycles)	250, 251
UL Flammability Rating	UL 94V-0

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Image

Frequently Asked Questions

Do you support product customization?

Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Is there a discount for large-quantity orders?

Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
