Name: M16 4 Pin IP67 Waterproof Power Connector Female To Male 300V Durable For Applications
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Circular Connector

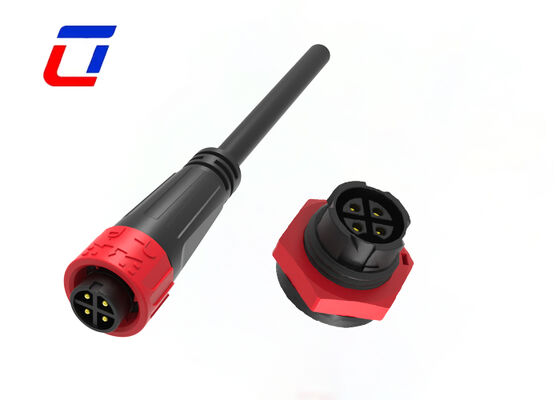

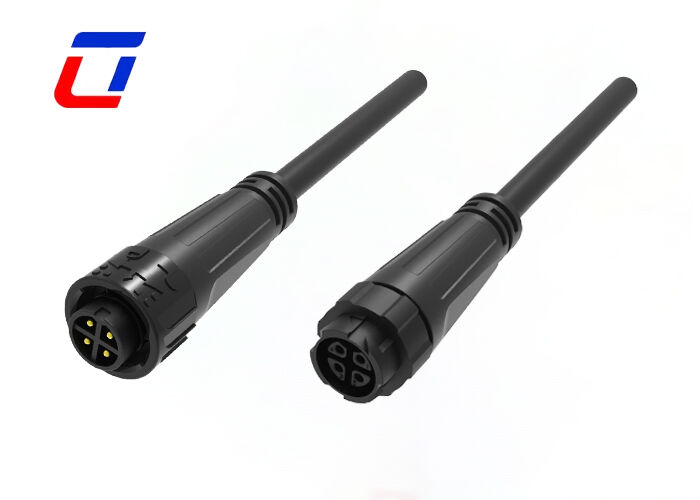

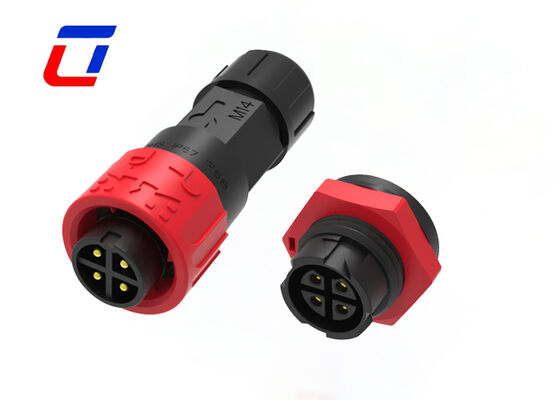

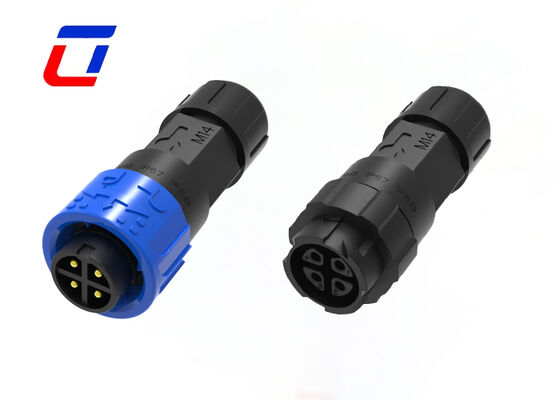

M16 4 Pin IP67 Waterproof Power Connector Female To Male 300V Durable For Applications

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T, D/A, D/P, MoneyGram, L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Contacts:	4 Pin	Current:	Max 10A
Voltage Rating:	300 V	Waterproof Level:	IP67
Material Of Copper Needles:	Copper Alloy	Diameter Range:	MAX 9.00mm
Highlight:	M16 waterproof power connector , IP67 waterproof circular connector , 300V durable female to male connector

10A 4Pin Waterproof Circular Connector,Quick Release Male To Female Connector

Description of Industrial Waterproof Circular Connector

This waterproof connector is engineered for a wide range of power applications, featuring an easy-to-operate push-lock mechanism. Simply insert the connector, and it locks automatically in just one second.

Two terminal options are available: screw terminals and soldering terminals. With the screw terminal design, no soldering is required—field installation takes only minutes, making it the ideal solution for easily creating custom waterproof connection cables.

For applications that demand soldered wire connections, the model also works perfectly when paired with appropriately sized contact pins.

Main Feature

Push lock quick release system,hassle-free operation.
Multic-core are available for selection: 2Pin,3Pin,4Pin,5Pin,2+4Pin,7Pin,8Pin.
Field assembly version:wire to wire / wire to board
High current rated waterproof connector good choice up to 10A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	4Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

M16 4 Pin IP67 Waterproof Power Connector Female To Male 300V Durable For Applications 0

More Technical Details

M16 4 Pin IP67 Waterproof Power Connector Female To Male 300V Durable For Applications 1

FAQ

Q1:Can I get a free sample before placing a bulk order?

A1:We offer free samples for standard models, but the shipping cost is at your expense. For customized samples, a small fee will apply and can be deducted from the formal order later.

Q2:Do you support product customization?

A2: Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

Q3:How to choose the suitable connector?

A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm the next.
* Confirm Cable guage
* Confirm Cable Length and Material.
