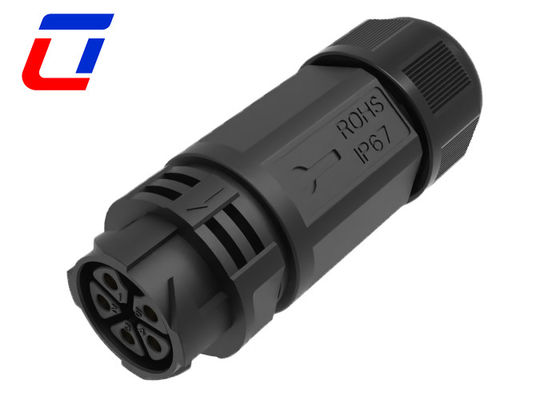

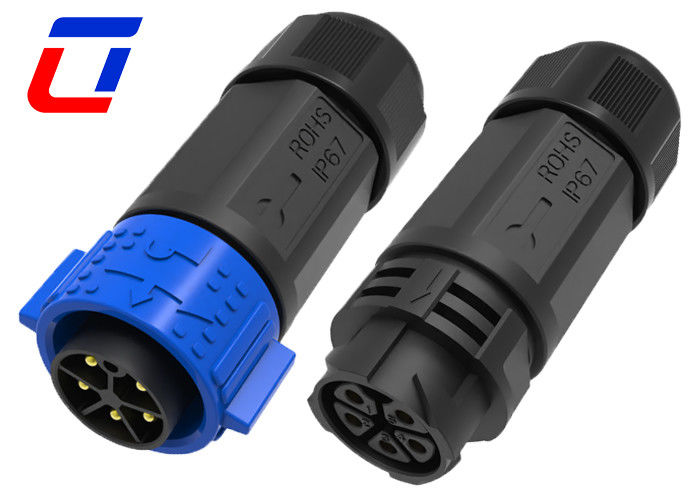

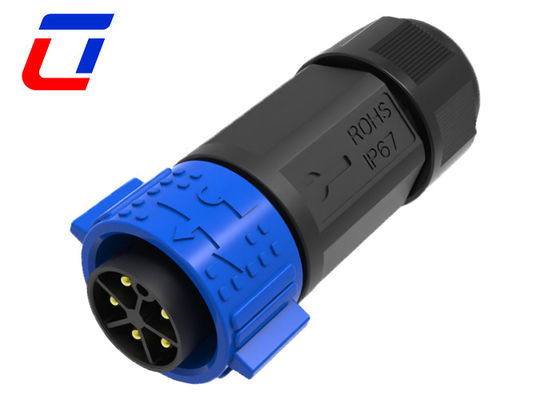

20A Industrial Waterproof Power Connector , 5Pin Waterproof Power Cord Connector
Quick Details of Waterproof power plug
This model connectors is specialized for various power applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.Both screw terminals and soldering terminals option available.
Thanks to its screw based terminals, soldering is not required and installation just takes a few minutes for field assembly. which is the perfect solution to make your own waterproof connection cables easily.
It's also a good choice for the applications which requests wire connections in soldering with the suitable contact pin size.
| Electrical Parameters |
| Number of Poles |
5Pin waterproof connector |
| Current Rating |
30A max. |
| Voltage Rating |
600VAC max. |
| Durability Voltage |
2500VAC @ 60 s. |
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5+2Pin and 2+20Pin available
- Field assembly version:both wire to wire and wire to board options
- High current rated waterproof connector good choice up to 50A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
| Operation Parameters |
| Voltage Rating |
600VAC max |
| Current Rating |
50A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 6.0mm2 |
Production Dimension
More Technical Details
FAQ
Q1:What is rated voltage?
A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q2:What is rated Current?
A2: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
Q3:How to choose the suitable connector?
A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm the next.
* Confirm Cable guage
* Confirm Cable Length and Material.
