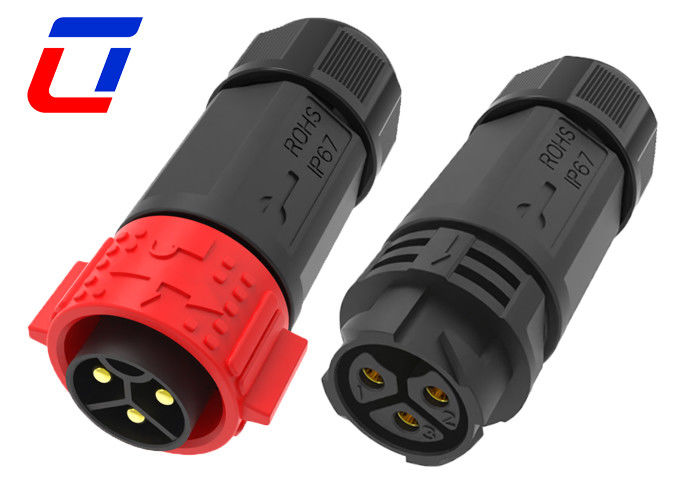

Name: High Voltage 50A Cable Male Female Connector Waterproof With Push Locking
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Cable Connector

High Voltage 50A Cable Male Female Connector Waterproof With Push Locking

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	Negotiation
Payment Terms:	T/T, D/A, D/P, MoneyGram, L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Waterproof Rating:	IP67	Number Of Pins:	3
Current:	50A	Temperature Range:	-40℃~+105℃
Application:	Solar Panel	Color:	Red/Black
Highlight:	50A Cable Male Female Connector , Cable Male Female Connector Waterproof

2Pin 50A Cable To Board Waterproof Male Female Power Connector With Push Locking

Quick Details of 2Pin waterproof Connector

This model connectors is specialized for various power applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.Both screw terminals and soldering terminals option available.

Thanks to its screw based terminals, soldering is not required and installation just takes a few minutes for field assembly. which is the perfect solution to make your own waterproof connection cables easily.

It's also a good choice for the applications which requests wire connections in soldering with the suitable contact pin size.

Electrical Parameters
Number of Poles	3
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm2 ~ 6.0mm2

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Product Dimension

High Voltage 50A Cable Male Female Connector Waterproof With Push Locking 0
