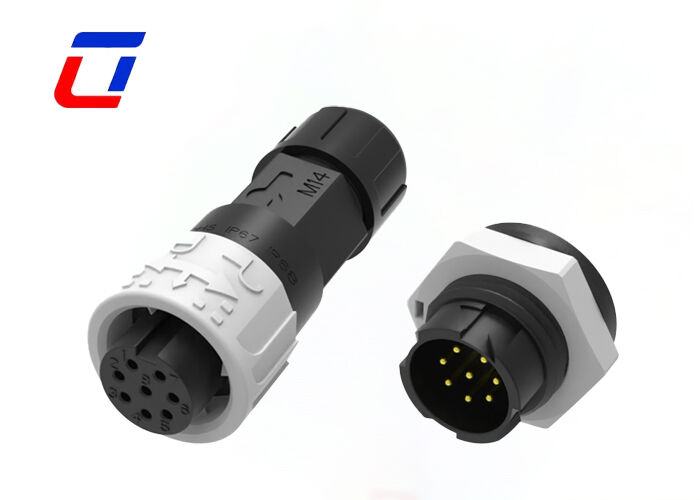

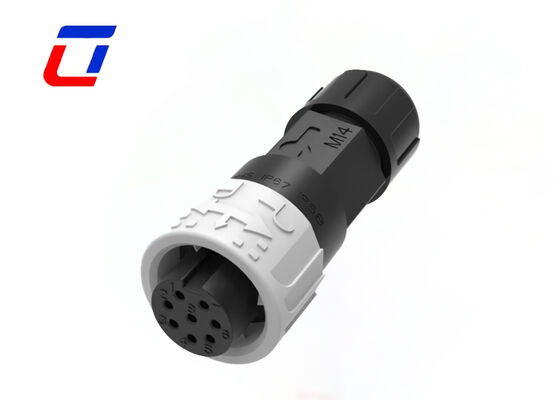

M16 Male Female waterproof connector 8 pin ip67 panel mount Data connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export carton
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Material:	PA66	Application:	Power,Automotive,LED,Electrical Equipment,LED Lighting Etc.
Number Of Pins:	8PIN	Current:	5A
Waterproof Rating:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	M16 waterproof connector 8 pin , IP67 panel mount data connector , male female waterproof plug socket

M16 8-Pin Waterproof Connector

M16 8 Pin Waterproof Connector 5A IP67 Quick Release Male Female Connector For Signal

Product Overview

Tailor-made for signal transmission in industrial scenarios, this M16-sized 8-pin round connector focuses on wire-to-board connection, providing reliable waterproof performance and adaptability. Following the M16 standard circular structural design, it features a precision 8-pin layout that seamlessly adapts to signal docking needs between cables and circuit boards in industrial equipment, ensuring independent and stable transmission of multi-channel signals.

Performance Characteristics

The connector balances transmission accuracy and environmental durability with high-conductivity copper alloy contacts that undergo precision processing and anti-oxidation treatment. This ensures low transmission loss and small contact resistance for accurate transmission of industrial control commands and sensor feedback data. The industrial-grade weather-resistant PA66 housing provides excellent aging and impact resistance, combined with professional waterproof sealing technology to achieve IP67 protection against dust, oil, moisture, and light rain.

Structural Design

Features a snap-on quick docking design that requires no complex tools, allowing precise docking between cables and circuit boards with bare hands. This significantly improves equipment assembly efficiency and maintenance convenience. The connector offers strong anti-vibration and anti-drop performance, adapting to high-frequency vibration environments in industrial equipment operation.

Product Specifications

Connector System	Cable-to-Board
Sealable	Yes
Shell Type	Plastic Shell (PA66)
Number of Poles	8
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.
Operating Temperature	-40°C to +105°C
IP Protection Rating	IP67
Durability Rating	500 cycles
UL Flammability Rating	UL 94V-0

Key Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin
Field assembly version: both wire-to-wire and wire-to-board options
Current rated 5A for long-term operation
Cable assembly service supported with customization available
OEM/ODM services welcome

Application Industries

Communications equipment
Product coding machines and inkjet systems
Inventory product coding
Solar systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimensions

Technical Details

Frequently Asked Questions

Who is responsible for customs clearance? Do you provide necessary documents?

We provide complete customs clearance documents including commercial invoice, packing list, bill of lading, and certification reports. Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

What payment methods do you accept?

We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

What is your Minimum Order Quantity (MOQ)?

The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
