Name: Plastic Circular Connectors M25 2+20Pin Low Voltage IP67 Waterproof Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Outdoor Waterproof Connector

Plastic Circular Connectors M25 2+20Pin Low Voltage IP67 Waterproof Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Waterproof Rating:	IP67	Number Of Pins:	22Pin Waterproof Connector
Temperature Range:	-40℃~+105℃	Application:	Solar Panel
Color:	Red/Blue/Green	Shell:	PA66
Highlight:	M25 waterproof circular connector , low voltage IP67 connector , 2+20Pin plastic connector

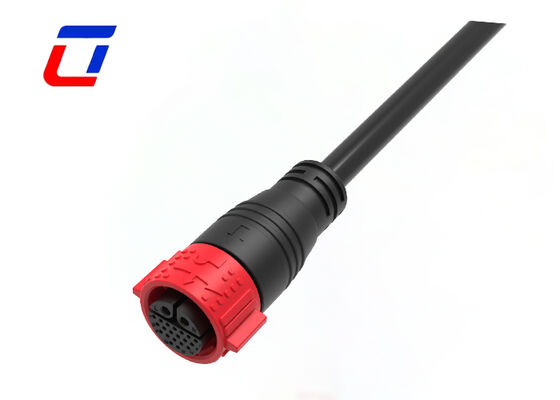

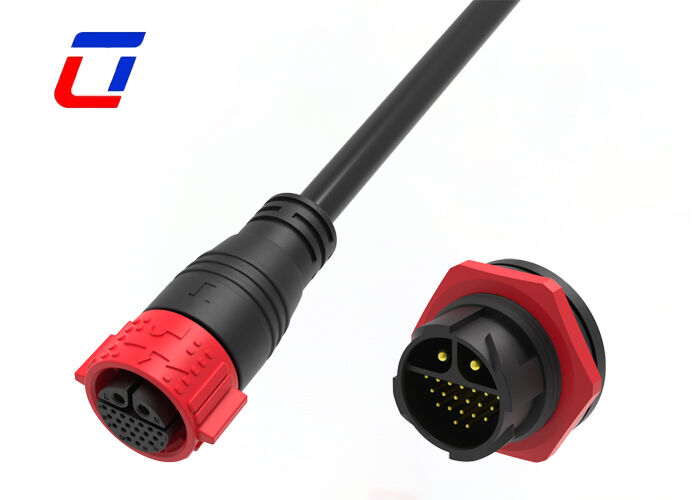

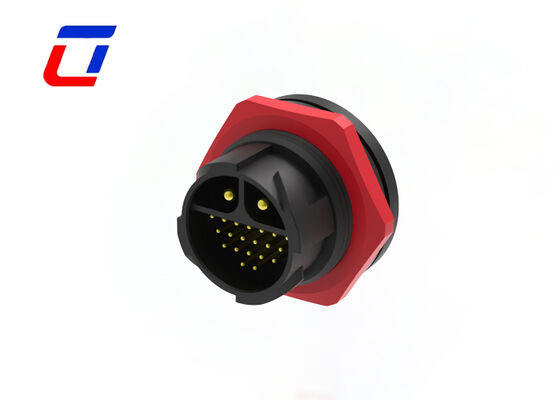

Plastic Circular Connectors M25 2+20Pin Low Voltage IP67 Waterproof Connector

Product Overview

Signal And Power Multi Connectors M25 2+20 Pin Waterproof 300 Volt Wire To Board

Key Features

2+20 Pin Exclusive Configuration: Adopts an exclusive design of 2 power pins + 20 signal pins, enabling simultaneous stable power supply and multi-channel signal interaction. Eliminates the need for multiple connectors, simplifying equipment circuit structure and improving integration efficiency.

Convenient Quick Lock Structure: Integrates a quick lock mechanism that automatically completes locking after insertion, requiring no tools. Complete plug-in operation in seconds, significantly improving installation and maintenance efficiency.

Cable assembly work for Multi pin Connectors is supported. Custom service available upon detailed cable request.

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Main Features

Field assembly version cable to board
Cable assembly service available
Quick lock fast release structure
Waterproof rated sufficient for most outdoor applications
Power signal in one set
2pin power 20pin signal arrangement

Electrical Parameters

Number of Poles	22pin wire to board connector
Current Rating	20A +5A
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	40A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Product Configuration

Product Dimension

More Technical Details
